Nickel-based single crystal superalloys are excellent structural materials which have been extensively applied to modern aero-engines, especially high-pressure turbine blades, since they can maintain remarkable creep and oxidation resistance at elevated temperatures [1,2,3,4,5]. With the continuous increase in turbine inlet temperatures, the service temperatures of single crystal superalloys are facing significant challenges. In recent years, many refractory elements including Re, W and Mo have been added to enhance the solution strengthening effects, thus improving the service temperature of alloys [6,7,8,9]. Nevertheless, topologically closed packed (TCP) phases, such as σ, μ, P and R phases have become common during service at high temperatures for the excessive addition of refractory elements [10, 11]. In general, the harmful effects of TCP phases in single crystal superalloys can be summarized as the following: (a) depleting the solution strengthening elements in γ matrix; (b) deteriorating the microstructural stability between γ and γ′ phases; (c) inducing creep porosities under elevated temperature conditions; (d) bringing about crack initiating and propagation in their vicinity [9, 12,13,14]. Therefore, the effects of refractory elements on the formation and evolution of TCP phases must be clarified to optimize the composition designs of single crystal alloys.

Huo et al. found that both the σ phase and the P phase were enriched in Re, W, Cr and Mo; however, the σ phase consisted of more Re and Cr while the P phase was composed of more Mo element [15]. They also pointed out the μ phase was enriched in Mo and they would transform into R phase which contained more Cr at elevated temperatures [16]. However, in the work of Cheng et al., all the TCP phases after thermal exposure at 1100-1150 °C were identified as μ phase with more Re and W contents [17]. In the study of Tan et al. about Ru-containing single crystal superalloys, the TCP phases were also deduced as μ phase after long term aging at 1100 °C [18]. To conclude, the effects of refractory elements on the type of TCP phases in single crystal superalloys after thermal exposure at elevated temperature are still in controversy. Moreover, the morphology of TCP phase is also of great significance to the mechanical properties in single crystal alloys. Tian et al. proposed that the strip-like μ phase would bring about more stress concentration and the reduction in creep life compared to blocky μ phase [19].

Compared to other refractory elements, Re has attracted more attention for the disputable effects in single crystal superalloys, and the previous researches have been mainly focused on its promotion to TCP phases and deterioration to microstructural stability [20, 21]. However, few literature has reported the effects of Re on the evolution of TCP phase during long term thermal exposure, especially under elevated temperature conditions. In the present study, several single crystal superalloys with different Re additions were designed to investigate the role Re had played in the evolution of TCP phase during long term aging. The type and morphology of TCP phases were identified while the segregation behaviors of Re and other refractory elements were also measured.

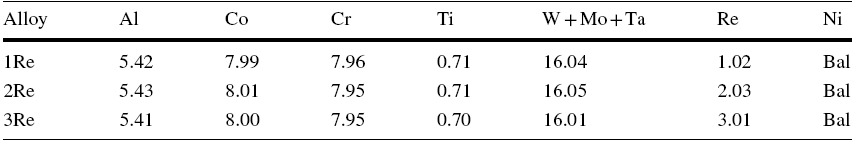

In the present work, three experimental superalloys are named by Alloy 1Re, 2Re and 3Re and the chemical compositions of them are listed in Table 1. The tested alloys have similar composition except for different Re additions. The single crystal rods were directionally solidified along [001] orientation, and the withdrawal rate was maintained at 6 mm/min.

Both differential scanning calorimeter (DSC) and metallurgical analysis methods were used to determine the solution temperatures of the experimental alloys. Considering the similar incipient melting temperatures, the same heat treatment regimes were carried out on each alloy as follows:

$1300\;^{ \circ } \text{C} \times 1{\text{ h}} + 1305\;^{ \circ } \text{C} \times 3\;{\text{h}} + 1315\;^{ \circ } \text{C} \times 4\;{\text{h}},\\ {\text{air cooling }}\left( {\text{AC}} \right) \to 1080\;^{ \circ } \text{C} \times 6\;{\text{h}},\\ {\text{AC}} \to 870\;^{ \circ } \text{C} \times 24\;{\text{h}},\quad {\text{AC}} .$

After standard heat treatments, specimens of the experimental alloys were cut into 6-8 mm for long term thermal exposure at 1120 °C to investigate the microstructural stability and the evolution of TCP phases. The microstructure after exposure for 100, 200, 500 and 1000 h was examined by optical microscopy (OM) and Inspect F50 scanning electron microscopy (SEM), and the metallographic specimens were polished and etched with 4 g CuSO₄ + 10 ml HCl + 20 ml H₂O. The selected area diffraction patterns (SADP) of TCP phases were obtained by JEM 2100 transmission electron microscopy (TEM) equipped with an EDS system to identify the transformation of the TCP phases. Specimens for TEM observation were cut normal to the [001] orientation and mechanically grinded to approximately 40 μm. These foils were then electrochemically thinned using a twin jet polisher in a solution of 10% perchloric and 90% ethanol at - 20 °C.

Furthermore, an electron probe microanalyzer (EPMA 1600, Shimadzu) was used to elucidate the elements segregation behavior. In view of the fine microstructure after standard heat treatments, a special coarsening heat treatment was carried out; hence, the chemical compositions of the γ′ phase and γ matrix could be detected accurately.

Figure 1a displays the as-cast structure normal to [001] orientation in the experimental alloys. It was seen that the dendritic cores and interdendritic regions were well distributed and the micro-segregation was distinct. The heat-treated microstructures of the tested alloys with different Re additions are shown in Fig. 1b. The γ′ phase with perfect cubic shape was found embedded in the γ matrix uniformly in the three alloys. The volume fractions of the cubic γ′ phase were measured to be approximately 60-65 vol% while the average γ′ size was among 0.29-0.32 μm.

Figure 2 illustrates the microstructure evolution of Alloy 1Re during long term aging at 1120 °C. After 100 h, the rafted γ′ phase was clear in both dendritic and interdendritic regions while few TCP phase was found. The TCP phase began to precipitate when the aging time came to 200 h and their growth was relatively moderate with time extending. During 500-1000 h, no significant changes were observed except for slight increase in the length and amount of TCP phases which dominantly presented rod-like morphology, as shown in Fig. 2c, d. Therefore, it can be inferred that Alloy 1Re exhibits perfect microstructural stability.

The microstructural stability of Alloy 2Re was relatively worse compared to Alloy 1Re, as shown in Fig. 3. Both rafted structures and the TCP phase were observed after aging for 100 h and the initial rod-like TCP phase gradually transformed into needle-like morphology from 200 to 500 h. As aging time prolonged to 1000 h, TCP phases with long needle shape could be clearly seen to cut through the γ′ lamellar and γ matrix, which was similar to the observation of DD6 single crystal alloys after 1100 °C aging [22]. Besides, the needle-like TCP phase precipitated in a specific orientation, i.e., at the angle of 45° along the γ′ rafting direction, as shown in Fig. 3d. Note that further nucleation of the TCP phase could hardly be found after 200 h regardless of the rapid growth rate, which manifested that the nucleation process had been restrained at the early stage of aging.

Alloy 3Re demonstrated the worst microstructural stability among the experimental alloys under elevated temperature condition, as shown in Fig. 4. Several fine TCP phases presented just after 100 h of thermal exposure and the kinetics of the TCP phase nucleation were considerably accelerated compared to previous two alloys. From 200 h to 500 h, large quantities of the blocky TCP phases were diffusely distributed in dendritic areas; however, no obvious variation was found in the size of the precipitates with the extension of time. After 1000 h, the typical rafted structures vanished and the fine blocky TCP phase had occupied the dendritic regions which deteriorated the microstructural stability of the alloy entirely.

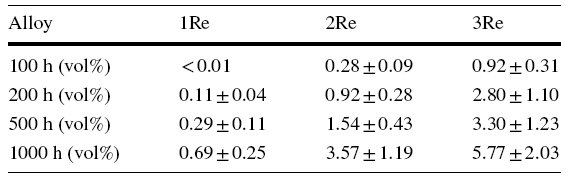

Table 2 lists the volume fractions of the TCP phases in the three single crystal alloys during long term aging. It is evident that the increase of Re contributes to the precipitation of detrimental phases while the volume fraction of the TCP phase in Alloy 3Re has exceeded 5 vol% after 1000 h isothermal exposure, which indicates that the alloy has lost its microstructural stability to considerable extent. Furthermore, the morphologies of the TCP phases transformed from short rod-like to long needle-like morphology and then blocky shape with increasing Re addition. Based on above observations, it can be deduced that the minor adjustment of Re addition has brought about significant influence on the precipitation behavior of the TCP phase and corresponding microstructural stability. Further discussion is required to explain effects of Re on the morphological evolution of the TCP phase.

Figure 5 shows bright TEM images and the corresponding selected area diffraction patterns of the typical TCP particles after 1000 h aging in the experimental alloys with different Re additions. As mentioned above, the TCP phases in Alloy 1Re, 2 Re and 3Re demonstrated rod-like, needle-like and blocky-like morphology, respectively; however, these TCP particles were all characterized to be μ phase by selected area diffraction analysis. Therefore, it is rational to conclude that the increasing addition of Re can exert influence on the TCP morphology but it has not changed the type of the precipitations. It is noteworthy that some parallel lamellar structures were observed inside the μ phase and they could be regarded as planar defects like the stacking faults, which is in concordance with the previous reports [23, 24]. Moreover, the TCP particles were found mainly surrounded by the rafted γ′ phase in consideration of the excessive consumption of refractory elements like Re, W and Cr in γ matrix, as shown in Fig. 5.

The primary chemical compositions of the μ phase in the alloys with different Re additions containing after 1000 h long term exposure were obtained by TEM-EDS, as listed in Table 3. The μ phases in the three alloys were all enriched in Cr, Co, Mo and Re, additionally, they contained especially high concentration of W which manifested that W was the pivotal forming element in the μ phase. The concentration of Re in the μ phase was correspondingly promoted with the increase in its addition in the alloys, i.e., the blocky μ phase in Alloy 3Re contained the most Re elements. What was interesting was that the total contents of (Cr + Co + Mo) were generally kept unchanged in spite of the morphology evolution in the μ phase. Furthermore, considering the severe depletion of Al, Ta and Ti in the μ phase, they were basically negligible and not listed.

The equilibrium phase diagrams of the three single crystal alloys were calculated via Thermal-Calc software (date base: TTNi7, Institute of Metal Research, Chinese Academy of Sciences) to further verify the precipitate behavior of the TCP phase. The temperature for calculation was chosen ranging from 600 to 1400 °C, as shown in Fig. 6. It was apparent that 2 wt% and 3 wt% Re addition increased the precipitation temperature of the σ phase and μ phase compared to Alloy 1Re. No evident changes were observed concerning the precipitation temperature of the μ phase between Alloy 2Re and 3Re, but the P phase would begin to appear at about 1150 °C in the Alloy 3Re. Nevertheless, in the work of Zhou et al. about DD6 single crystal superalloy, the P phase would precipitate after annealing at 1100 °C [25]. The precipitation behavior of P phase has the necessity to be figured out in the future works. In the present work, the exposure temperature was kept at 1120 °C; hence, the vast majority of TCP phases in the three alloys were inferred to be μ phase, which conformed to the TEM identification.

In addition, the variation of μ phase amount in the three experimental alloys calculated by Thermal-Calc was also consistent with the above experimental results, i.e., the volume fraction of the μ phase increased with the increase of Re content in the alloys. In summary, the addition of Re could accelerate the precipitation of the μ phase and contribute to the formation of other TCP phases under elevated temperature conditions, thus promoting the instability of the microstructure in the experimental alloys.

The element segregations between the dendritic cores and interdendritic areas, the γ′ phase and γ matrix are of great significance to the precipitation of μ phase [17, 21, 26]. The different Re additions led to distinct elements segregation behaviors which thereby causing variations in the amount and morphology of the μ phase.

The segregation ratio between the dendritic cores and interdendritic areas was defined by Eq. (1) as follows:

where C_d and C_i were the average chemical compositions of elements in the dendritic cores and interdendritic regions, respectively. The as-cast specimens were analyzed by EPMA to obtain the chemical compositions of the dendritic structures, and the calculated segregation ratios in the three tested alloys are shown in Fig. 7a. On the one hand, considering the high melting points of element W and Re, they would firstly segregate to the dendrite arms and then interdendritic areas; therefore, they were identified as strong negative segregation elements (K < 1). On the contrary, elements Al, Ti, Ta and Mo were characterized to be positive segregation elements which chiefly segregated to interdendritic regions. On the other hand, the addition of Re facilitated the segregation of Al, Ti and Ta to interdendritic regions and the distribution of W to dendritic cores. Note that the dendritic segregation of Re became rather serious with increasing Re content in the alloys. Hence, it can be inferred that the dendrite arms of Alloy 3Re have accommodated considerable refractory elements compared to other two alloys.

Moreover, it is known that the TCP phases are precipitated from the supersaturated γ matrix under elevated temperature conditions; thus, the influence of Re on the elements partitioning between the γ′ phase and γ matrix has the necessity to be clarified. The partition ratio (R) of each alloying element was calculated through Eq. (2) as follows:

There is no doubt that R is used to characterize the preferential partition to the γ matrix and γ′ phase of the alloying elements, respectively. Hence, it can be inferred that R > 1 manifests the preferential distribution to γ matrix while R < 1 indicates the constituent element of γ′ phase. Figure 7b illustrates the calculated partition coefficient of each alloying element, it is obvious that the partition coefficient of Re has increased dramatically while some improvements are also found in the coefficient of Cr, with increasing Re addition in the alloys. No significant changes were observed in the partition coefficients of other elements. As reported in the previous studies [27,28,29,30], the concentration of Re, W, Cr and Mo in γ matrix was harmful to the microstructural stability for the promotion of TCP precipitates. Therefore, the distribution behaviors of Re and Cr, especially the strong segregation of Re, are believed to be the primary reason which may rationalize the various morphologies of the TCP phases in the experimental alloys.

According to the theory of solids transformation [31], the critical nucleus radius r* and nucleation energy ∆G* are determined by the extent of supersaturation in γ matrix. Based on the partition coefficients in the three alloys, the addition of Re has promoted the level of γ supersaturation evidently. Therefore, both r* and ∆G* would be decreased with increasing Re content, i.e., the nucleation behavior of the μ phase was promoted when the addition of Re was increased, which was consistent with the experimental results as well as previous research [17].

Moreover, typical orientations of the majority particles, viz. approximately 45° along the rafted γ′ phase, could be observed in Alloy 1Re and 2Re at the early stage of long term aging. In Alloy 3 Re, however, numerous blocky-like μ phases precipitated at 100-200 h aging and no specific orientations could be found. From the aspect of nucleation energy, the μ phase was believed to precipitate at the typical coherent interface to minimize the energy consumption, when the γ supersaturation was relatively low during thermal exposure [32, 33]. For Alloy 3 Re, however, in view of the high supersaturation of Re and Cr in γ matrix, interactions between these solution elements may occur, which give rise to the further element segregations. The element segregations as well as lattice imperfections help accelerate the atomic diffusion rate and lower the nucleation barrier of the TCP phase [34]. Hence, the blocky-like μ phase can precipitate from the γ matrix straightly and become less dependent on the low-index crystal planes to nucleate, i.e., no distinct coherent relationship can be observed between the particles and matrix.

Based on the above analysis, schematic illustration of the possible precipitate behavior of the μ phase at the early stage of aging is drawn in Fig. 8. It was overt that the initial μ phase exhibited short rod-like morphology in Alloy 1Re and 2Re, in addition, plenty of tiny blocky-like μ phases were dispersedly distributed in the space, as a consequence of severe elements segregation caused by the higher content of Re in Alloy 3Re.

Further growth behavior of the TCP particles, especially the growth dynamics and morphology evolution, can be determined by multiple factors. Actually, different interface coherence between the precipitations and matrix plays a crucial role in the growth process, which can even exert influence on the mechanical properties of the alloys [35,36,37,38]. According to last section, the μ phase exhibited short rod-like shape after nucleation in Alloy 1Re and 2Re; therefore, the semicoherent side and incoherent edge of the μ phase were believed to have different migration rates [39]. The smoothly curved incoherent facets tend to be the dominant growing orientation while the migration behavior of semicoherent interface may be impeded. Expressly, the lengthening rate of rod-like or needle-like μ phase can be considerably influenced by the element supersaturation in γ matrix [39]. In this work, the supersaturation of the refractory elements was promoted as the addition of Re increased; therefore, it could be inferred that Re addition contributed to the growth process of the μ phase while the lengthening rate had been promoted in Alloy 2Re. Consequently, the morphology of the μ phase in Alloy 1Re and 2Re exhibited rod-like and long needle-like, respectively, after 500-1000 h isothermal exposure at 1120 °C.

According to TEM observation, it was obvious that the rod-like and needle-like μ phases exhibited good relationships with γ matrix and the low-index crystal planes were used to obtain selected area diffraction patterns. Nevertheless, it was hard to acquire the crystallographic orientations between the blocky μ phase and matrix, which conformed to the inference in the previous section. For Alloy 3Re, a relatively fast atomic absorption existed in the blocky μ phase on account of the high concentration of refractory elements during long term aging [36], thus generating considerable lattice strain energy between the precipitation and matrix. The μ phase particles have the necessity to tilt the growth direction constantly to match this energy. Controlled by multiple planes, no dominant orientation could be observed during the growing period of the blocky μ phase while the growth rate of these particles was thereby sluggish. Schematic illustrations of the final morphology of the μ phase in the three experimental alloys were drawn to illustrate the morphologies evolution caused by various addition of Re, as shown in Fig. 9. Affected by the comprehensive functions of Re addition, the TCP particles demonstrated distinct morphologies in the three experimental single crystal alloys after long term aging under elevated temperature ultimately.

Evolution characteristic of the TCP phase during long term thermal exposure and the effects of Re on the TCP type and morphology were systematically investigated in this work. The main conclusions could be drawn as follows:

(1) Addition of Re contributed to the precipitation of TCP phases, which rationalized the considerable decrease in microstructural stability under elevated temperature condition.

(2) All the TCP phases were characterized to be μ phase enriched in W, Cr and Re; however, the particles morphology transformed from rod-like to long needle-like and then blocky-like as the Re content increased in the alloys.

(3) Higher Re content aggravated the element segregations between the dendritic arms and interdendritic regions, the γ′ phase and γ matrix. Meanwhile, the precipitation temperature of the μ phase could be raised by the addition of Re.
