Microstructural Characteristics and Mechanical Properties of Low-Alloy, Medium-Carbon Steels After Multiple Tempering

1 Introduction

In wear-resistant components, a combination of toughness, hardness and strength is normally required to improve their wear performance [1, 2]. In this context, medium-carbon steels with a tensile strength of over 1000 MPa are extensively used in automotive, military and tool-making industries, especially for wear resistance under severe loading conditions [3, 4]. However, a required superior wear performance, especially under more severe working environments, has driven the need for modifications in the alloy design and manufacturability of these steels.

The wear-resistant steel components are widely produced through quenching and tempering [5]. In this case, many investigations have been reported on the effect of multiple tempering on the microstructure and mechanical properties of alloyed steels [6, 7, 8, 9]. It is well known that during single/multiple tempering and at different tempering temperatures, various transformations occur which mainly consisted of Fe/alloy carbides precipitation, recovery of martensite, decomposition of retained austenite, growth/coarsening/spheroidisation of Fe/alloy carbides and the segregation of alloying elements and impurities [10, 11]. Furthermore, double or multiple tempering is conventionally used for different steels in terms of their chemical composition and final application to further decompose retained austenite, to enhance toughness and to reduce quenching defects.

In recent years, efforts have been made to employ small additions of alloying elements, especially microalloy elements, to increase tempering resistance, to control the microstructure and to reduce hydrogen embrittlement susceptibility during tempering [5, 12, 13, 14]. However, no comparative study has focused on the effects of small additions of alloying elements in low-alloy, medium-carbon steels on the microstructural evolution and its relationship with mechanical properties during each stage of multiple tempering. This can further clarify the effects of small alloying additions on microstructure which can be used as an approach in controlling the mechanical properties, wear resistance and processing defects [15]. Therefore, a systematic study was performed on two low-alloy, medium-carbon, wear-resistant steels (namely, NiCrSi and NiCrMoV steels) during double or triple tempering to better understand the effect of chemical composition on their microstructure and mechanical properties, especially hardness and toughness, at each tempering stage and different tempering temperatures.

2 Experimental Procedure

The materials used in this investigation included two hot-rolled steels with different alloying contents (Table 1). The studied steels are hereafter referred to as “NiCrSi” and “NiCrMoV” steels. The NiCrMoV steel was produced through vacuum induction melting and electroslag remelting (VIM-ESR), and NiCrSi steel was cast by electric arc melting, ladle arc melting and vacuum degassing. These steels are designed to produce shear blades to perform under severe impact/sliding wear conditions. The NiCrSi and NiCrMoV steels are received in fully annealed conditions, and they are normally tempered after oil quenching to minimise the risk of quenching defects and improve their wear performance under service conditions.

The quenching-tempering heat treatments were carried out using samples with a size of 40 mm × 60 mm × 100 mm. During quench hardening, NiCrSi and NiCrMoV samples were austenitised for 1.5 h and directly immersed-agitated in oil from 850 to 900 °C, respectively. Samples were cooled to about 100 °C in oil with an average cooling rate of about 4 °C/s, and they were immediately transferred to a preheated tempering furnace in order to minimise any possible quenching defects [15, 16]. The volume fraction of martensite was estimated using the following equation [17]:

Vol_martensite=1-exp⁡(-α_m(T_th-T_Q)), (1)

where T_th is the theoretical martensite start temperature and T_Q is the quenching temperature. α_m is the chemical composition rate parameter and is calculated using a linear equation as below.

α_m=0.0224-0.0107C%-0.0007Mn%-0.00005Ni%-0.00012Cr%-0.0001Mo%.(2)

The theoretical martensite start temperature of the studied steels was approximated using the following equation [18]:

T_th=545-601.2(1-exp(-0.868C%)-34.4Mn%

-13.7Si%-9.2Cr%-17.3Ni%-15.4Mo%

+10.8V%+4.7Co%-1.4Al%-16.3Cu%-361Nb%-2.44Ti%-3448B%. (3)

The T_th of NiCrSi and NiCrMoV steels was determined as 302 and 254 °C, respectively. However, the initial assessment showed that about 97 and 91 (vol%) of austenite would have transformed into martensite at initial quenching temperature (i.e. 100 °C) in NiCrSi and NiCrMoV steels, respectively.

Double/triple tempering was carried out at identical holding times (2 h at each stage) and temperatures (i.e. 250, 300, 400 and 500 °C). The NiCrSi steel was double tempered and NiCrMoV steel was subjected to triple tempering, as prior experimental results have shown that these conditions provide a proper wear resistance under service conditions [19]. Note that the lifetime of triple-tempered NiCrMoV blades is roughly two times longer than double-tempered NiCrSi blades under similar working conditions. However, the effect of tempering on the microstructure and mechanical properties, especially hardness and toughness, was studied using separate samples after each tempering stage. Sample preparation for microstructural characterisations was carried out according to standard procedures on both rolling and normal direction planes. Microstructural characterisations after each tempering stage were performed by scanning electron microscopy (SEM) using a FEG-Nova NanoSEM at 20 kV.

The crystalline characteristics of the studied steels were studied using a PANalytical Empyrean X-ray diffractometer with Co K_α radiation (i.e. including Co k_α1 (λ = 0.178900 nm) and Co k_α2 (λ  = 0.179284 nm) radiations). The retained austenite was characterised by Rietveld refinement method using the Topas Academic package software V5.0. The instrumental effects on X-ray diffraction (XRD) patterns were subtracted using a diffraction pattern of standard silicon sample (SRM 640e). The dislocation density of steels was approximated based on Williamson-Hall (WH) method using XRD data according to the following equation [20]:

Dislocationdensity=14.4(ε²/b²), (4)

where ε and b are microstrain and Burger’s vector (0.248 nm for ferrite), respectively. The microstrain was estimated by the following equation using all diffraction peaks:

α+2ε(sinθ/λ)=δ(cosθ/λ), (5)

α=0.9/D, (6)

where θ (rad), λ, δ and D are the diffraction angle, X-ray wavelength, physical broadening of XRD peak width (i.e. full-width half-maximum (FWHM)) and average particle size, respectively.

The hardness of the studied steels was determined by Vickers hardness testing with 30 kg load and 15 s holding time before unloading. The average hardness value was calculated from ten measurements for each sample. A better comparison between the results was made by converting HV hardness into HRC.

The mechanical properties of double-tempered NiCrSi steel and triple-tempered NiCrMoV steel were also evaluated using tensile testing. The tensile testing was carried out according to ISO-6892 using a Zwick-Roell testing machine. The elongation during the test in cylindrical dog-bone-shaped tensile specimens (rolling direction) with a gauge length of 25 mm and gauge diameter of 5 mm was recorded by a non-contact high-resolution laserXtens extensometer. The repeatability of the results was examined using three separate samples from each steel.

The V-notched Charpy impact testing was performed to determine the toughness of the steels after each tempering stage. The Charpy impact testing was carried out using a pendulum Avery-Denison Charpy testing machine with a nominal energy of 300 J. Standard Charpy specimens with a size of 55 mm × 10 mm × 10 mm and a notch radius of 0.25 mm were tested according to ASTM E23 at room temperature. The V-notch edge and front edge of Charpy specimens were parallel to transverse and normal directions, respectively. The repeatability of the results was tested using three separate samples. The fractured Charpy impact and tensile samples were examined by SEM.

3 Results

3.1 Microstructure

Figures 1 and 2 show SEM micrographs corresponding to the NiCrSi and NiCrMoV steels after single and double/triple tempering at different temperatures. Microscopy observations showed a fully tempered martensite structure throughout both rolling and normal direction planes of the studied steels. From SEM analysis, it was also found that the size and morphology of tempered martensite (i.e. dark lath-shaped tempered martensite features) did not change during single, double or triple tempering in both steels. Nevertheless, after tempering, the microstructure of the studied steels showed significantly different features in the tempered martensitic structure.

In NiCrSi steel, bright filmy- and blocky-shaped features mainly appeared on the lath boundaries. It is thought that these bright features are related to retained austenite. By increasing the tempering temperature up to 400 °C, a large amount of nanoscale rod-shaped carbide precipitates appeared in the microstructure of NiCrSi steel. Tempering at 400-500 °C considerably reduced the number of bright film-shaped features at the expense of formation of rod and spherical-shaped carbide precipitates. However, tempering at 500 °C did not show any coarsening (Ostwald ripening) of precipitates in NiCrSi steel. Moreover, the microscopy results showed insignificant variations in NiCrSi steel due to double tempering.

SEM observations of NiCrMoV steel showed a large number of rod-shaped inter-/intra-lath carbide precipitates in the microstructure after tempering at 250 °C (Figs. 1, 2). This is similar to the results of other researchers who also reported Fe₃C precipitation in AISI 4340 steel after tempering at 250 °C [21, 22]. The microstructure did not indicate any significant difference in the morphology and density of precipitates and tempered martensite due to tempering at higher tempering temperatures (i.e. up to 400 °C) and after double/triple tempering. However, after tempering at 500 °C, a larger frequency of very fine spherical precipitates appeared in the microstructure of NiCrMoV steel, suggesting a possible spheroidisation phenomenon. The results suggested that a tempering at 500 °C provided conditions for the spheroidisation of precipitates, while double or triple tempering did not influence the density, morphology and size of precipitates. This is in line with the results of double-tempered NiCrSi steel at all tempering temperatures, suggesting no considerable change in the precipitation and growth coarsening of precipitates due to double or triple tempering in both steels.

3.2 Retained Austenite

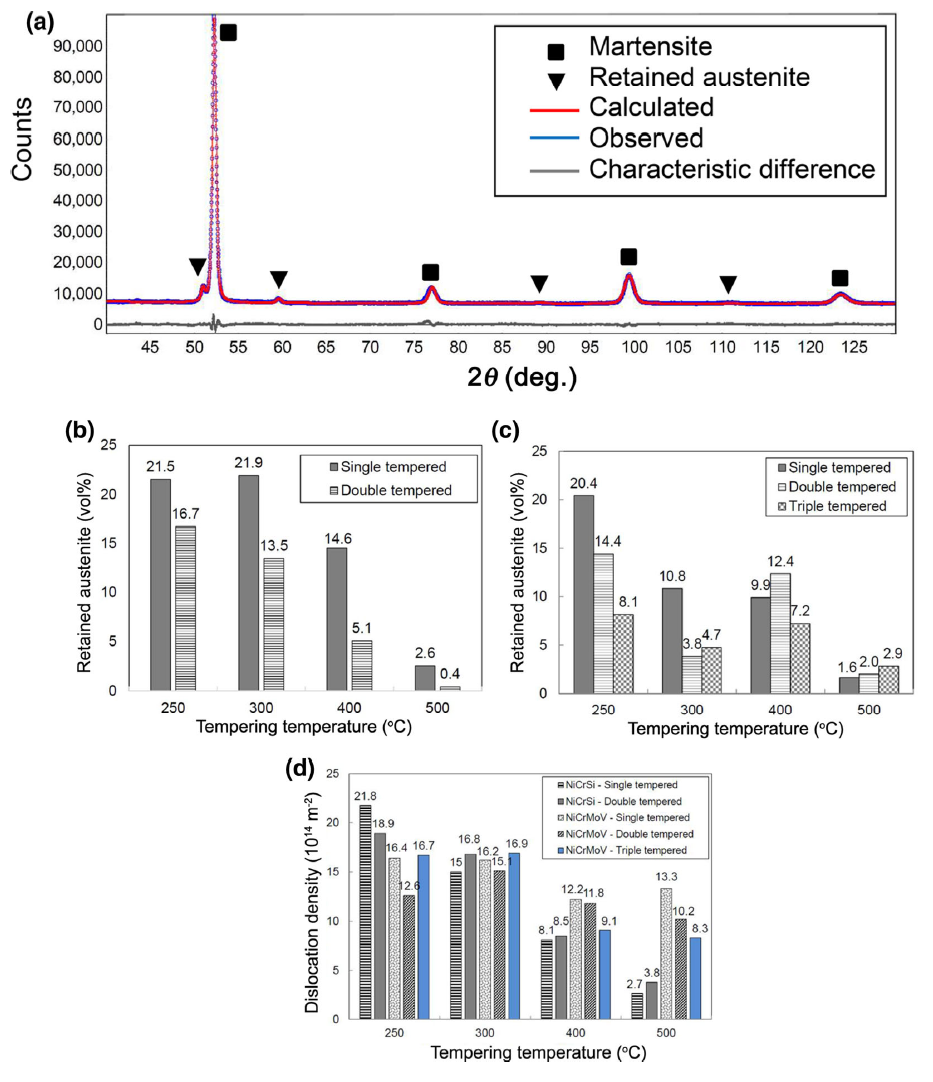

Figure 3a shows a selected XRD spectrum of a quenched-tempered sample. The XRD analysis revealed the presence of retained austenite and martensite in the quenched-tempered microstructure of both steels. Table 2 presents the characteristics of retained austenite measured from XRD results. The lattice parameter of retained austenite was calculated from the extrapolation method of Nelson and Riley. Subsequently, the carbon content of retained austenite was determined from its lattice parameter (nm) by the following equation [23]:

a_{retainedaustenite}=0.35467+0.00467wt%C.aretainedaustenite=0.35467+0.00467wt%C.(7)

Figure 3b, c compares the trend of retained austenite variations as a function of tempering temperature after single, double or triple tempering. In both NiCrSi and NiCrMoV steels, a significant amount of retained austenite was observed after single tempering up to 400 °C. Additionally, the results suggested that a double or triple tempering did not considerably reduce the amount of retained austenite. It is clear that the retained austenite was stable up to 400 °C in both studied steels, regardless of the number of tempering stages. Of particular note was that the retained austenite was dramatically decomposed at the tempering temperature of 500 °C in both steels. This range of temperature is higher than reported temperatures for other grades of steel in the literature, suggesting a higher thermal resistance in the studied steels [8, 10]. The results showed that the retained austenite decomposition is rather sluggish and strongly depends on the tempering temperature. Also, below a certain temperature range, a double or triple tempering did not lead to the complete decomposition of retained austenite.

In both steels, the results showed a retained austenite with an average carbon content of over 1.1 wt% after tempering up to 250-300 °C and also a dramatic reduction in the carbon level at higher tempering temperatures. The results also suggested that double or triple tempering at 250 and 300 °C progressively increased the carbon content of retained austenite.

Figure 3d compares the variation of dislocation density of tempered samples. These results are comparable to other reports in the literature about the dislocation density of tempered martensitic steels [24]. In NiCrSi steel, a progressive and considerable reduction in dislocation density was observed since tempering temperature increases. However, double tempering did not significantly alter the dislocation density of NiCrSi steel. Generally, the results showed insignificant variations in the dislocation density of NiCrMoV steel after tempering at different temperatures and also after double or triple tempering, while triple tempering at 400 and 500 °C seems to slightly reduce the dislocation density. Moreover, random retesting confirmed that the variations in the amount of retained austenite in both steels were in the range of 1-4 wt%, while insignificant variations were observed in the average carbon content and dislocation density.

3.3 Hardness

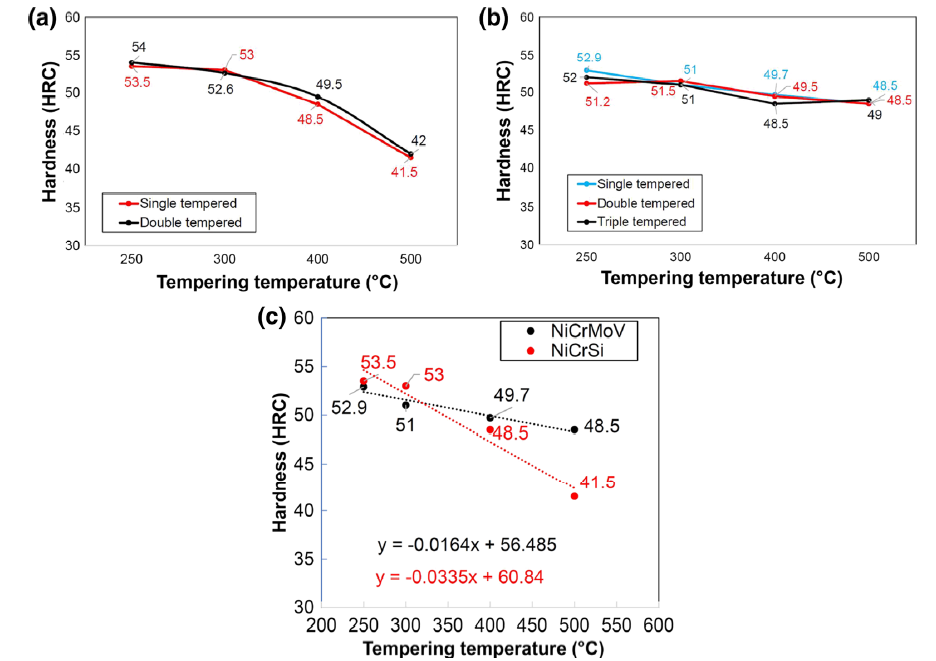

Figure 4a, b shows the hardness variation of NiCrSi and NiCrMoV steels after single, double or triple tempering at different temperatures, respectively. The results indicated an insignificant difference in the hardness of samples after double or triple tempering in both steels. Clearly, the hardness variation after tempering is mainly associated with tempering temperature.

Figure 4c compares the trend of hardness variation as a function of tempering temperature for NiCrSi and NiCrMoV steels. Note that the presented data are focused on the single tempering, as the double and triple tempering did not show any hardness changes (Fig. 4a, b). Interestingly, the results demonstrated different softening/tempering resistances in the studied steels with ascending order NiCrMoV steel > NiCrSi steel, particularly at temperatures over 300 °C. This is important, as it can significantly influence the wear behaviour of material, especially when frictional temperature rises can accelerate subsurface softening and enhance delamination wear [1].

3.4 Tensile Properties

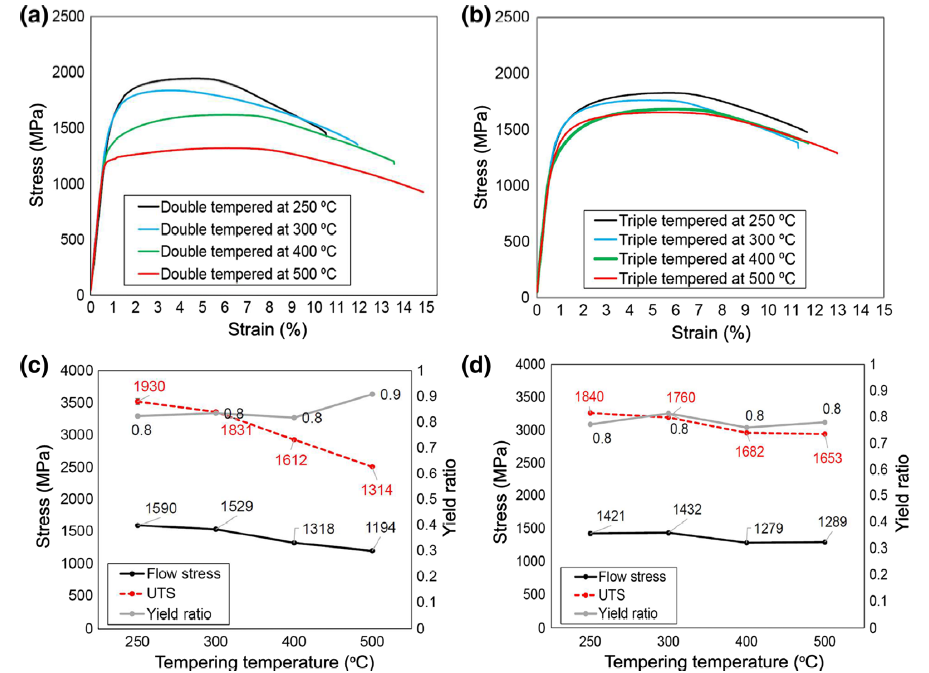

Figure 5a, b indicates the selected engineering stress-strain curves corresponding to double-tempered NiCrSi steel and triple-tempered NiCrMoV steel. Further details of tensile properties are shown in Table 3. In NiCrSi steel, the results evidenced a progressive softening since tempering temperature increases. Clearly, the strengths (i.e. flow stress and ultimate tensile strength (UTS)) were reduced at the expense of ductility increases. In NiCrMoV steel, the results showed a similar flow stress (i.e. 0.2% offset proof stress) in tempered samples up to 300 °C, while tempering at temperatures ≥ 400 °C slightly reduced the flow stress. To assist interpretation of results, the yield ratio (flow stress/UTS) was also calculated from tensile results (Fig. 5c, d). The trend of yield ratio shows a similar level after tempering at all temperatures in both steels. The results suggest that the work hardening up to UTS was not considerably changed due to tempering at different temperatures in both steels.

3.5 Charpy Impact Toughness

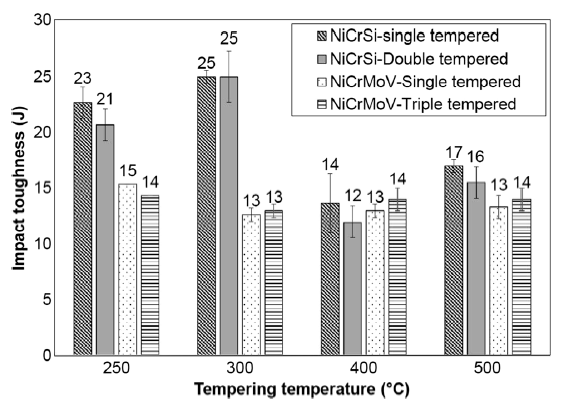

Figure 6 shows the variation of average Charpy impact toughness in terms of tempering temperature in single- and double-tempered NiCrSi steel and in single- and triple-tempered NiCrMoV steel. The results showed a trough in the toughness plot of NiCrSi steel. By increasing the tempering temperature up to 400 °C, the results indicated a sudden toughness decrease from ~ 25 to ~ 14 J in both single- and double-tempered NiCrSi samples. However, tempering at 500 °C again slightly raised the toughness to ~ 16 J. This trend is consistent with other reports in the literature about tempered martensite embrittlement (TME) behaviour for medium-carbon steels, suggesting a TME at 400 °C [11, 25, 26]. The results also demonstrated that the toughness was not significantly changed in both single- and triple-tempered NiCrMoV samples due to tempering at different temperatures. It can be suggested that toughness variations in both steels were mainly dependent upon the first tempering stage and double/triple tempering did not influence the results.

3.6 Fractography of Fractured Specimens

Figure 7 shows typical SEM micrographs corresponding to the tensile fracture surface of double-tempered NiCrSi and triple-tempered NiCrMoV steel samples. Tensile fracture surface in all samples appeared to be a cup-cone fracture surface. A dominant ductile dimple fracture was observed in all samples, regardless of the tempering conditions. Interestingly, NiCrSi samples showed a Rosette fracture surface after tempering at 500 °C (Fig. 7g) [27].

Figure 8 indicates SEM micrographs corresponding to the Charpy specimen fracture surface of single-tempered NiCrSi steel and single-tempered NiCrMoV steel. As with the tensile specimens, a dominant dimple fracture appeared in all samples. From the SEM observations, it was also found that the fracture surface was quite similar in single- and double-tempered NiCrSi samples so that double tempering did not affect the fracture mode. However, by increasing the tempering temperature, especially ≥ 400 °C, a higher frequency of quasi-cleavage features with a considerably larger facet size was observed in both single- and double-tempered NiCrSi samples. This shows good agreement with the observed impact strength results and indicates that the TME (at 400 °C) mainly enhanced a quasi-cleavage fracture behaviour in NiCrSi samples. In NiCrMoV steel, quasi-cleavage fracture features were hardly observed and the dimple size was relatively finer than NiCrSi samples. However, the results showed insignificant difference in the fracture mode of NiCrMoV samples in terms of tempering temperature and after triple tempering. Additionally, no brittle intergranular fracture was observed in both steels, which is generally known as a sign of grain boundary weakening due to the segregation of alloying elements and impurities [26, 28].

4 Discussion

4.1 Microstructure

The microstructural evolution of the studied steels showed different behaviours at different tempering temperatures (Figs. 1, 2). In NiCrSi, the frequency of carbides was significantly and progressively raised with increasing tempering temperature, especially at boundaries after tempering at ≥ 400 °C. This behaviour was ascribed to its chemical composition, in particular the effect of Si, Cr, Mo, Ni and Mn [7, 9, 28, 29, 30]. The solute carbon diffuses out from carbon-supersaturated martensite through high diffusion paths (e.g. boundaries) and can precipitate at early and prolonged stages of tempering [31]. However, the presence of the above-mentioned elements can differently control the precipitation behaviour of transition carbides and cementite at different tempering temperatures and holding times [6, 9, 32]. The chemical composition of NiCrSi steel is similar to AISI 4340 steel, but with higher amounts of Si and Ni [12, 26]. It has been well understood that these elements, especially Si, inhibit the dissolution of transition carbides and the formation and growth coarsening of cementite and also enhance the dissolution of cementite during tempering. In fact, a segregation of silicon around cementite nucleus can considerably and locally increase the activity of carbon, which prevents the flux of carbon to cementite nucleus [7, 33, 34]. The large density of precipitates in NiCrSi steel, in particular coarser interlath precipitates at ≥ 400 °C, was attributed to cementite. As mentioned earlier, the bright filmy-shaped features were also reduced at the expense of formation of precipitates in NiCrSi steel. Presumably, the retained austenite was considerably decomposed and cementite was formed at ≥ 400 °C in NiCrSi steel (Fig. 3). Similarly, the XRD results also showed a significant decomposition of retained austenite at this range of temperature in NiCrSi steel (Fig. 3). This is consistent with the results of other researchers who also reported a similar range of temperature for precipitation in other grades of steel, for example 300 M steels [14, 26].

In NiCrMoV steel, a high density of interlath and intralath precipitates was observed after tempering at 250 °C, while no considerable difference was seen at higher tempering temperatures up to 400 °C (Figs. 1, 2). Although it was outside the scope of this work to determine the nature of precipitates, it is thought that the observed precipitates were mainly cementite and V-carbides. A higher level of carbon in NiCrMoV steel and the lower Si content were likely the reasons for the accelerated precipitation from a lower tempering temperature, i.e. 250 °C. Moreover, tempering at 500 °C evidenced a slight spheroidisation of precipitates in both steels. Similarly, other researchers have reported a similar range of temperature for the spheroidisation of cementite in steels [6, 21]. However, the microscopy observations showed no precipitate coarsening in NiCrMoV steel. It should be noted that the chemical composition of NiCrMoV steel is quite comparable to 300 M steel, while its Si content is as low as AISI 4340 steel and the levels of Ni and Cr are almost twice those of 300 M steel [12, 26, 35]. Ni and Cr not only can increase the toughness and strength of steels, especially during cryogenic treatments, but also they can retard the growth coarsening of precipitates during tempering [36, 37, 38]. Hence, a higher level of Ni and Cr as well as Mo addition might be the main reason for the insignificant growth coarsening of precipitates in NiCrMoV steel, while 0.22 wt% Si failed to retard the precipitation at lower tempering temperatures.

SEM results also showed a very low frequency of relatively coarse martensite in NiCrSi steel, whereas this behaviour was hardly observed in NiCrMoV steel (Figs. 1, 2). It is thought that the observed difference in the morphology of martensite was mainly attributed to the effect of V and Mo additions and a higher level of C, Ni and Cr, which might further enhance the refinement of martensite in NiCrMoV steel during an identical quenching condition [20]. Moreover, it was found that the lath-shaped tempered martensite was reluctant to any growth coarsening during the applied tempering processes. The straight sides of lath-shaped martensite are low-energy and coherent/semi-coherent boundaries and therefore immobile [10, 39]. These structures require a higher level of energy for lateral growth/coarsening. It is thus clear that the applied tempering processes did not change the size and morphology of lath tempered martensite in both steels.

4.2 Retained Austenite

The XRD results of NiCrSi steel showed a dramatic decrease in the amount of retained austenite after tempering at 400 °C (Fig. 3 and Table 2). In NiCrMoV steel, the retained austenite was gradually reduced by increasing the tempering temperature, though a significant amount of retained austenite was still remained in the microstructure below 500 °C.

The XRD results also showed that the carbon content of retained austenite was raised after double or triple tempering at 250-300 °C in both steels, while higher tempering temperatures reduced its carbon level (Table 2). As the samples were quenched in oil down to about 100 °C, a partitioning of carbon from martensite to retained austenite during subsequent tempering might increase its carbon content. This is similar to conventional quenching-partitioning processes, though our initial quenching temperature (i.e. 100 °C) was significantly lower than other reported temperatures in the literature [40]. Moreover, it has been shown that transition carbides are thermally unstable at higher tempering temperatures (e.g. ~ 300 °C) and they can be dissolved in the microstructure [41]. Perhaps, the presence of carbon solute and slow kinetics of Fe₃C precipitation due to the presence of Si could enhance the partitioning of carbon into retained austenite. Nevertheless, a gradual precipitation at higher temperatures in both steels could reduce the carbon content of retained austenite and consequently enhance the decomposition of retained austenite (Table 2) [26]. Additionally, the slight fluctuation in the carbon content of retained austenite, especially at higher tempering temperatures, might be related to the morphology of retained austenite and precipitation during tempering. Further investigations into the morphology of retained austenite would be required to better understand this behaviour.

Double or triple tempering of both NiCrSi and NiCrMoV steels showed a very slight reduction in the amount of retained austenite (Fig. 3). It is generally desirable to completely decompose the un/meta-stable retained austenite (with C_γ  < 1%) during tempering to avoid the formation of fresh martensite from retained austenite, especially under impact or fatigue loading conditions [3, 42]. This may endanger the performance of components and cause rapid fracture. However, our results confirmed the earlier conclusions about the microstructural variations, suggesting that the retained austenite decomposition was strongly dependent on temperature rather than the number of tempering stages in the studied steels.

4.3 Mechanical Properties

The present paper reports on the tensile properties of double-tempered NiCrSi steel and triple-tempered NiCrMoV steel. Moreover, the Charpy impact results are related to the single- and double-tempered NiCrSi steel and the single- and triple-tempered NiCrMoV steel.

4.3.1 Hardness and Flow Stress

A comparison between the hardness values of single-, double- or triple-tempered samples showed that the hardness variation is mainly controlled by the tempering temperature in both steels (Fig. 4). In fact, double or triple tempering did not significantly change the hardness of the studied steels. Similarly, the tensile results suggested a progressive softening due to tempering temperature increases in NiCrSi steel, while no considerable softening was observed in NiCrMoV steel (Fig. 4c). According to the SEM and XRD analysis, the strength/hardness variations were mainly attributed to the carbon content and dislocation density of martensite, precipitate strengthening and retained austenite volume fraction. In fact, the diffusion of carbon from carbon-supersaturated martensite to high diffusion paths, especially boundaries, and reduction of dislocation density and the presence of retained austenite would have resulted in softening of steel.

In NiCrSi steel, a progressive dislocation density reduction was observed with increasing tempering temperature (Fig. 3c). Furthermore, the presence of precipitates in the microstructure evidenced a possible reduction of carbon from carbon-supersaturated martensite. It is well known that the retained austenite is softer than martensite and a larger fraction of retained austenite can enhance the softening. In this context, the results showed no meaningful relationship between the volume fraction of retained austenite and softening in the studied steels. Furthermore, a gradual decomposition of retained austenite to ferrite could also further enhance the softening, though the newly formed carbides might contribute to strengthening of steel. However, the results showed that the softening effect of the above-mentioned mechanisms was more pronounced than the possible hardening effect of carbide precipitates. This is consistent with the results of other researchers who also reported a similar behaviour for tempered steels [28]. It can be thus inferred that the main reason for the softening of NiCrSi steel was mainly attributed to the dislocation annihilation/rearrangement and reduction of solute carbon from carbon-supersaturated martensite.

As noted earlier, the results showed a marginal hardness reduction in NiCrMoV steel after tempering (Fig. 4). In this way, the XRD analysis did not show a considerable variation in the dislocation density of NiCrMoV steel after tempering (Fig. 3). The SEM observations also showed insignificant variations in the size and density of precipitates during tempering and after double and triple tempering (Figs. 1, 2). Although there are no available data about the nature of precipitates in the present paper, it is thought that the observed precipitates are associated with cementite and V-carbide. It has been shown in the literature that Fe₃C carbides are not very effective in retarding the recovery of martensite during tempering, though transition carbides can inhibit the softening at early stages of tempering [32, 43]. Additionally, recent studies on the effect of V-carbide precipitates have shown that these precipitates can strongly retard the recovery of microstructure during prolonged tempering [23, 28, 43]. It can be thus suggested that the presence of V-carbides might be the main reason for the higher softening resistance of NiCrMoV steel.

The results also showed a slight hardness/strength reduction after tempering at 500 °C in both steels (Figs. 4, 5). This was mainly ascribed to the further recovery and carbon content reduction of martensite and also the spheroidisation of carbides, as shown in Figs. 1g, h and 2g, h. Similarly, other researchers have shown in the literature that the spheroidisation of carbides during tempering can enhance the softening of steels [5, 6].

4.3.2 Charpy Impact Toughness

A significant difference was observed in the trend of impact toughness variations in the studied steels after tempering from 250 to 500 °C (Fig. 6). The toughness of NiCrSi steel was suddenly and remarkably reduced at 400 °C, followed by a slight increase after tempering at 500 °C. In contrast, the results evidenced a rather similar level of toughness after tempering at all tempering temperatures in NiCrMoV steel (Fig. 6).

As with the tensile specimens, a dominant dimple fracture appeared in all Charpy samples. From the SEM observations, it was also found that the fracture surface was quite similar in single- and double-tempered NiCrSi samples, and double tempering did not affect the fracture mode. By increasing the tempering temperature, especially ≥ 400 °C, a higher frequency of quasi-cleavage features with a considerably larger facet size was observed in both single- and double-tempered NiCrSi steel (Fig. 8e, g). This behaviour is similar to a classic tempered martensite embrittlement in steels [13, 26]. It has been established that the TME is mainly related to interlath carbide precipitates and also mechanically unstable retained austenite [5, 13, 41]. In this case, our SEM and XRD observations evidenced a significant precipitation and reduction in the volume fraction of retained austenite after tempering at temperatures of ≥ 400 °C (Figs. 1, 2 and Table 2). The lower carbon content of retained austenite would have reduced the mechanical stability of retained austenite which might contribute to the decrease of the impact toughness of NiCrSi steel [42, 44]. It can be thus inferred that the observed phenomenon at 400 °C is primarily related to tempered martensite embrittlement, resulting from the carbide precipitation and unstable retained austenite. However, further softening of material due to tempering at 500 °C slightly neutralised the embrittlement (Fig. 4) [26].

In NiCrMoV steel, the impact toughness results evidenced a rather constant value at all tempering temperatures, regardless of variations in the dislocation density and retained austenite volume fraction (Figs. 3, 6). The results suggested that the toughness of NiCrMoV steel was less likely influenced by the retained austenite and dislocation density. In this way, the fractography of fracture samples also showed dominant ductile fracture with fine dimple features in all samples. However, a significant density of inter-/intralath precipitates was observed in the microstructure of NiCrMoV steel after tempering at 250 °C, while it was not considerably changed at higher tempering temperatures. The results suggested that the toughness behaviour of NiCrMoV steel might be mainly affected by the precipitation behaviour. This will be further clarified next.

The SEM results suggested insignificant difference in the size of martensite after tempering at different temperatures in both steels (Fig. 1). Moreover, previous studies have shown similar average prior austenite grain size and non-metallic inclusions size in NiCrSi and NiCrMoV steels, though the density of inclusions was qualitatively higher in the former steel [20]. Our toughness results ruled out the effect of inclusions and prior austenite grain size on the observed difference in the toughness of the studied steels after tempering (Fig. 6). However, the toughness of NiCrSi steel was reduced after tempering at 400 °C to the same level as that observed in NiCrMoV steel (Fig. 6). Considering a similar size and morphology of martensite after tempering at different temperatures, the presence of large precipitates in NiCrSi steel after tempering at 400 °C and in NiCrMoV steel could promote easier crack path and reduce the impact toughness [35, 44]. Similarly, other researchers have reported that the formation of carbides during tempering can reduce the toughness of steels [41, 45]. Moreover, a slightly higher level of carbon in NiCrMoV steel might be another reason for its lower impact toughness compared to NiCrSi steel. It can be suggested that the main reason for the relatively lower toughness of NiCrMoV steel compared to NiCrSi steel was primarily related to the effect of precipitates and carbon content.

4.3.3 Total Elongation

The tensile results showed a progressive increase in the total elongation of both steels by increasing tempering temperature (Fig. 5a, b and Table 3). It was also found that the total elongations of NiCrSi steel were slightly higher than NiCrMoV steel. This was mainly attributed to the softening mechanisms during tempering process, i.e. lower carbon content and dislocation annihilation of tempered martensite. The fracture surface of both steels also showed dominant dimple features in all samples, indicating a ductile fracture mode in both steels (Fig. 7). Interestingly, the fracture surface of NiCrSi steel after tempering at 500 °C showed a Rosette fracture feature (Fig. 7g). However, the remaining samples exhibited an ordinary cup-and-cone fracture surface. It is well known that precipitation at martensite lath boundaries can mainly cause Rosette fracture surface [27, 46]. This agrees with earlier conclusions about the microstructure of quenched-tempered samples, suggesting that the carbide precipitation at boundaries was mainly responsible for this behaviour in NiCrSi steel (Figs. 1g, 2g).

5 Conclusions

(1)The hardness results suggested that hardness reduction after tempering is primarily controlled by tempering temperature. However, double and triple tempering at the same temperature did not considerably change the hardness, regardless of the chemical composition of the studied steels.

(2)Hardness and tensile testing results showed that the tempering resistance of NiCrMoV steel was higher compared to NiCrSi steel, especially at temperatures over 300 °C. This was mainly ascribed to the effect of V-addition.

(3)The XRD analysis indicated that the retained austenite decomposition is mainly dependent upon the tempering temperature in both steels. It was also found that double or triple tempering at the same temperature did not completely decompose the retained austenite.

(4)The toughness of NiCrMoV steel was rather similar after single/triple tempering at different temperatures, while NiCrSi steel showed TME by a sudden impact toughness reduction after single/double tempering at 400 °C. The observed difference was mainly ascribed to their precipitation behaviour during tempering at different temperatures.

Acknowledgements

The authors would like to acknowledge the sponsorship provided by Innovate UK through the Knowledge Transfer Partnership Programme (KTP010269 Sheffield Hallam University and Tyzack Machine Knives Ltd.).

The authors have declared that no competing interests exist.

---
