Microstructural Characterization and Phase Separation Sequences During Solidification of Ni₃Al-Based Superalloy

1 Introduction

Ni₃Al-based superalloys are the widely used high-temperature structural materials in manufacture of aero-engines owing to their unique combination of high strength, creep resistance, wear resistance as well as fatigue properties at elevated temperature up to 1100 °C [1, 2, 3]. The excellent mechanical properties are primarily derived from high volume fraction (above 80%) of L1₂-type γ′-Ni₃Al intermetallic phase possessing anomalous yield behavior, which was firstly discovered by Westbrook [4]. Due to the enhanced critical properties required for aero-engines, the service temperature of traditional nickel-based superalloys has approached closed to the melting point [5, 6]. Therefore, along with the development of advanced aero-engines, the Ni₃Al-based superalloys possessing higher enduring temperature, lower density and outstanding mechanical properties are developed and expected to apply as a new generation of ultrahigh-temperature structural materials, replacing part of traditional nickel-based superalloys used as the hot-end components in the advanced aero-engines [7].

Due to their excellent high-temperature properties, the extreme brittleness caused by intergranular fracture has seriously hindered the development of Ni₃Al-based superalloys. Aoki and Izumi [8] found that the brittleness in the L1₂ intermetallic compound Ni₃Al could be overcome dramatically by microalloying with traces of boron, on the order of 0.1 wt%, which renewed a great interest in the Ni₃Al-based superalloys. Oak Ridge National Laboratory (ORNL) brought together over than 100 research institutes and launched a research program on intermetallic alloys. Thus, a number of commercial Ni₃Al-based intermetallic alloys were developed and introduced to various branches of industry in the past decades and attracted more and more attentions in recent years.

Liu et al. [9, 10, 11] proposed a family of intermetallic compounds (IC) of series Ni₃Al-based alloys, substituting 8 at.% Cr for 4 at.% Al into the Ni₃Al phase with small additions of Hf, Zr, Mo and Ti to improve the mechanical properties at elevated temperatures. Thereafter, a number of other Ni₃Al-based superalloys were designed and studied [12, 13, 14, 15, 16, 17, 18]. Zhang et al. [12] reported the as-cast and high-temperature microstructures of two polycrystalline Ni₃Al-based superalloys, i.e., MX246 and MX246A; Han et al. studied the heat treatment microstructure and mechanical properties of the directionally solidificated (DS) Ni₃Al-based superalloy IC6 [13] and single-crystal (SC) Ni₃Al-based superalloy IC6SX [14]; Zhang et al. [15] studied the flow behaviors of a DS Ni₃Al-based superalloy IC10; Gong et al. [16, 17, 18] investigated the heat treatment microstructure, stress rupture properties and oxidation resistance of SC Ni₃Al-based superalloy IC21. However, the majority of the previous works [19, 20, 21, 22, 23, 24, 25, 26, 27, 28] are mainly focused on the composition design, processing technologies and mechanical properties; little attention was paid on the microstructural investigation, especially for casting polycrystalline Ni₃Al-based superalloys [12]. Moreover, in consideration of its difficulty in characterization of the various γ′ phases, limited reports about the microstructural characterization of Ni₃Al-based alloy can be found [13, 22, 23, 26]. Generally, Ni₃Al-based alloys are prepared through casting technology, and it usually involves series of intermetallic phase transformations during the solidification. For this reason, understanding the precipitation behaviors involved during solidification process is vitally valuable for the design of casting technology [14, 15, 19, 22].

Although many studies have been reported about the popular Ni₃Al-based alloys, no systematic efforts have been carried out to investigate the intermetallic phase transformations involved during solidification process combined with microstructural characterization. In addition, the original as-cast microstructure has significant influences on the subsequent microstructural evolution during heat treatment, which is meaningful to be studied. Therefore, in the present work, by adding moderate W (1.5-2.5 wt%), Mo (3.5-5.5 wt%) and Hf (0.3-0.9 wt%) to enhance the elevated temperature properties, accompanied by higher Fe content (<2 wt%) to improve the weldability, a newly polycrystalline Ni₃Al-based superalloy was designed and applied to investigate the as-cast microstructure by optical microscopy (OM), scanning electron microscopy (SEM) as well as transmission electron microscopy (TEM) equipped with selected area diffraction (SAD) system; the intermetallic phase transformation sequences during heating and cooling processes are determined based on differential scanning calorimetry (DSC) measurements; the precipitation behaviors involved during solidification are discussed and schematic expressed in detail.

2 Experimental

The Ni₃Al-based superalloy used in this work was an as-casted ingot produced by vacuum induction melting (VIM) and electroslag remelting (ESR) techniques with a diameter of 150 and 68 mm in height, and its chemical composition (wt%) is listed in Table 1. To investigate the microstructure of the as-cast Ni₃Al-based superalloy, cylindrical samples with a diameter of 3 and 6 mm in height were prepared by wire electrical discharge machining (WEDM). The mechanically polished samples were chemically etched for 0.5 s with a solution containing 5 g CrO₃ + 10 ml H₂O + 30 ml HCl at room temperature. The microstructure was examined by OM, SEM and TEM equipped with SAD. SEM observation was conducted on a S4800 microscope operated at 15 kV. In order to analyze the γ′ phase morphology, TEM observations were performed on a JEM-2100F microscope with the voltage of 200 kV. Samples for TEM observations were firstly machined from the as-cast ingot and then grinded into 40- to 60-μm-thick foils. Subsequently, some disks with 3 mm in diameter were punched out from the grinded thin foils and then electro-polished using a solution of 5% HClO₃ + 95% C₂H₅OH (by volume) at the temperature in the range of -25 °C and 20 °C with the voltage of 40 V. DSC experiments were performed on a Mettler Toledo TGA/DSC 1 by heating from 25 to 1500 °C under the heating rate of 10 °C/min and then cooled to room temperature at the cooling rate of -10 °C/min in the Ar atmosphere, and the tested sample was cut from the as-cast bulk ingot with a weight of 30.7 mg. Image Pro-Plus software 6.0 was applied to measure size and volume fraction of the intermediate particles.

3 Results and Discussion

3.1 Microstructural Characterization of the As-Cast Ni₃Al-Based Superalloy

3.1.1 Morphology of Dendritic and Interdendritic Phases

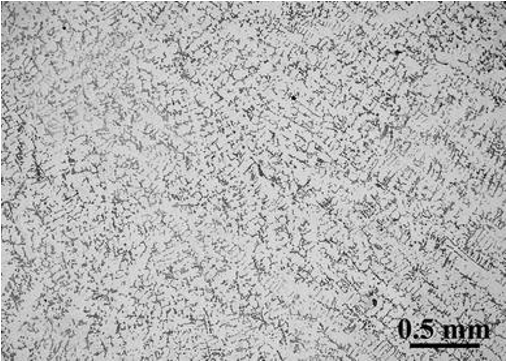

Figure 1 shows the OM morphology of the as-cast Ni₃Al-based superalloy. The microstructure exhibits the kind of terraced feature. The as-cast microstructure consists of two distinct regions: the dominating bright branches are determined to be the dendritic regions, whereas the interspersed dark stripes are identified as the interdendritic regions [12, 29]. Besides, the volume fraction of dendritic and interdendritic regions in the as-cast microstructure is measured to be about 80.63 and 19.37%, respectively. The Ni₃Al-based superalloy contains a larger portion of eutectic regions compared to that 18% in the as-cast MX246 alloy and 4% in the as-cast MX246A alloy [12], along with 6.5% γ + Ni₅Zr eutectic constituents in the as-cast IC221M alloy [30]. Moreover, the eutectic regions in this alloy exhibit a kind of diverse characteristics from above studies.

View original graphic| Download| PPT slide

Fig. 1   OM morphology of as-cast Ni₃Al-based superalloy

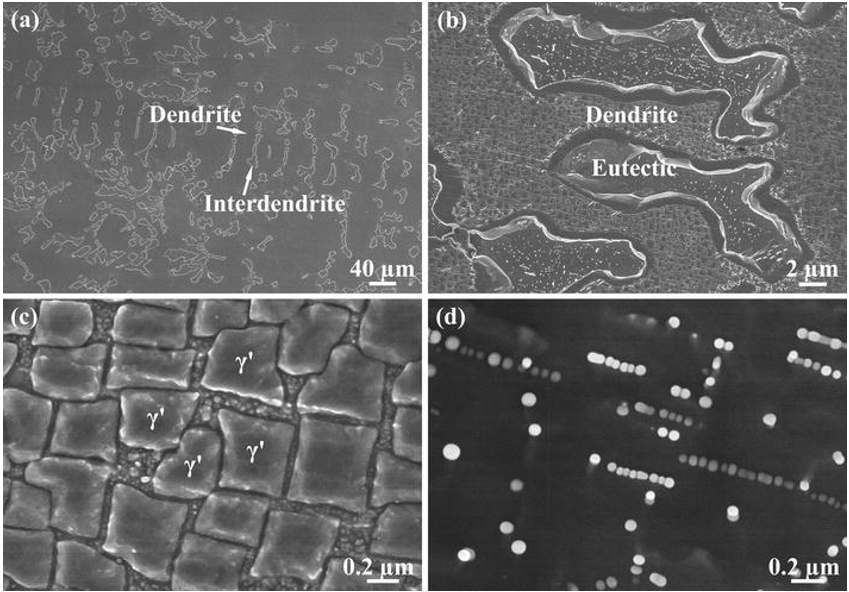

The corresponding SEM images under different magnifications are shown in Fig. 2. As shown in Fig. 2a, the as-cast microstructure consists of distinct dendritic and interdendritic regions, as marked by the arrows, respectively. The integral interdendrites can be observed to distribute randomly and possess parallel orientation in limited regions. Figure 2b demonstrates a dendritic and eutectic structure [12], and the magnified morphologies are exhibited in Fig. 2c, d, respectively.

View original graphic| Download| PPT slide

Fig. 2   SEM morphologies of as-cast Ni₃Al-based superalloy: a dendritic and interdendritic regions; b dendritic and eutectic structure; c cuboidal γ′ precipitates in dendrite; d quasi-spherical ultrafine particles in eutectic structure

As illustrated in the magnified morphology of dendrite in Fig. 2c, plenty of cuboidal γ′ precipitates are distributed uniformly, and the mean size is estimated to about 0.48 µm. The dendrite exhibits a masonry-wall-like morphology, where γ′ phase precipitates coherently from supersaturated γ phase, in shape of irregular cube possessing four diverse faces, inlaying with each other matching up to their geometric profile. Thus, the cuboidal γ′ precipitates can be treated to act as the bricks, and there exist γ-channels between two adjacent γ′ precipitates, where ultrafine particles are dispersively distributed. The average width of the γ-channels is about 0.05 µm. Figure 2d displays the magnified SEM morphology of the eutectic structure, where some quasi-spherical particles are observed. The quasi-spherical particles emerge a kind of linear arrays as well as scattered distribution in the eutectic structure. The SEM morphologies of the explored as-cast Ni₃Al-based superalloy have been presented as above, and the cuboidal γ′ precipitates within dendrite are clearly demonstrated, while the particles distributing within γ-channels and eutectic structure cannot be qualitatively identified, which will be determined by the following TEM observation.

3.1.2 TEM Characterization of the Dendrite

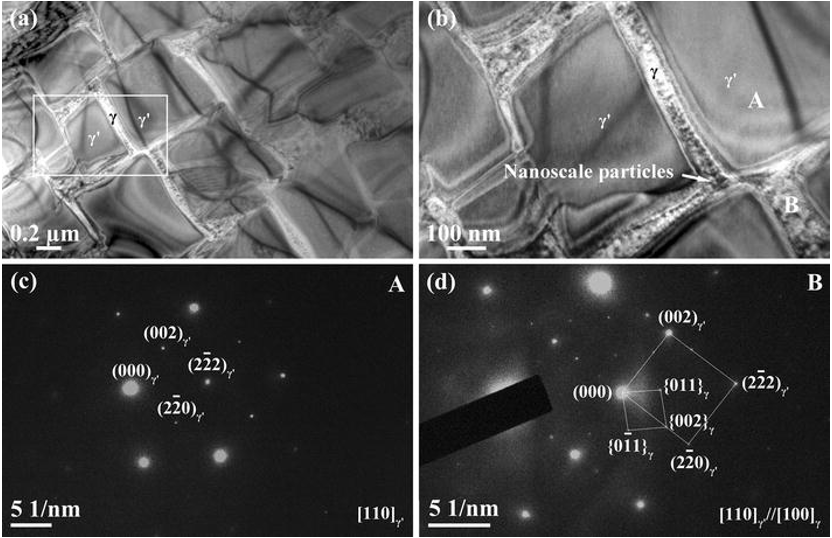

In order to further determine the crystal structure of the ultrafine particles distributed within the γ-channels between adjacent γ′ precipitates in the dendrite, TEM observation was carried out, and the corresponding images coupled with SAD patterns in the zone axis parallel to [110]_γ′ and [100]_γ are shown in Fig. 3. As indicated in Fig. 3a, γ′ phase precipitates coherently with cuboidal morphology in the obtained TEM bright-field image for the dendrite, in good agreement with the SEM image of Fig. 2c. As shown in Fig. 3b, which is the magnified TEM image of the marked rectangular region in Fig. 3a, two adjacent γ′ precipitates are separated by γ-phase channels, and there is apparent boundary between the γ-channel and γ′ precipitate. Besides, a plenty of nanoscale particles are homogenously precipitated within the γ-channel.

View original graphic| Download| PPT slide

Fig. 3   TEM bright-field images for dendrite at low a and high b magnification, corresponding SAD patterns for marked areas of Ac and Bd in b (the zone axis is parallel to [110]_γ′ and [100]_γ)

To analyze the crystal structure of the nanoscale particles, the SAD patterns are acquired. Figure 3c shows the corresponding SAD patterns in the zone axis parallel to [110]_γ′ for the marked A area in Fig. 3b, which obviously proves its L1₂ structure of the cuboidal γ′ phase [31]. As for the corresponding SAD patterns for the marked B area, Fig. 3d reveals two disparate types of crystal structure corresponded to γ phase and γ′ phase, respectively. Hence, it can be inferred that there is γ′ phase within the γ-channel between cuboidal γ′ precipitates, and the ultrafine nanoscale particles can be determined as a diverse kind of γ′ phase. It can be concluded that the dendrite is composed of quasi-cuboidal γ′ precipitates connected by γ-channels where ultrafine γ′ particles are distributed, so the dendrite can be defined as γ′ + γ dendrite.

3.1.3 TEM Characterization of the Interdendrite

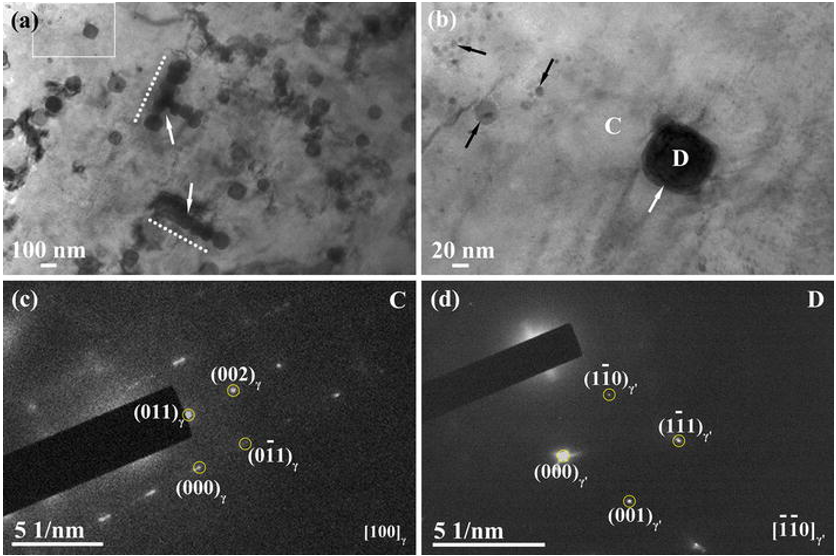

From the SEM morphology of Fig. 2d, a number of quasi-spherical particles are observed within the eutectic structure, i.e., interdendritic region. To precisely determine its morphology and crystal structure, TEM observations associated with SAD patterns were conducted and are shown in Fig. 4. In the bright-field image of the eutectic structure shown in Fig. 4a, a number of coherent quasi-spherical particles are observed, which is counted to be about 60 nm in mean diameter indicated by the arrows. Moreover, the particles tend to exist in linear arrays, as marked by the dotted line, consistent with the morphology in Fig. 2d. In the magnified image of Fig. 4b, its quasi-spherical morphology can be seen more clearly; in addition, some tiny particles are discovered unexpectedly, as indicated by the black arrows. The tiny particles are supposed to precipitate from the supersaturated γ phase during the solidification process. Figure 4c shows the SAD patterns for the selected C area in Fig. 4b, which reveals its γ phase characteristic. Otherwise, the SAD patterns for the D particle prove the quasi-spherical particles to be γ′ phase. Therefore, the interdendrite is characterized as γ′-γ eutectic structure comprising γ phase and dotted quasi-spherical γ′ particles.

View original graphic| Download| PPT slide

Fig. 4   TEM bright-field images for eutectic structure at low a and high b magnification, corresponding SAD patterns for marked areas of Cc and D d in b (the zone axis is parallel to [100]_γ and [$\overline{1}$$\overline{1}$0]γ′

3.2 Phase Separation Sequences During Solidification Process

3.2.1 Determination of Transformation Sequences

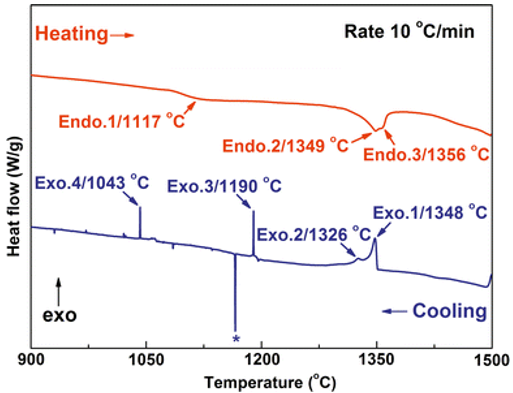

DSC results of the as-cast Ni₃Al-based superalloy are presented in Fig. 5. Three endothermic peaks emerged during heating from 900 to 1500 °C, which reveals the three-stage transformations. A slightly endothermic peak (Endo.1) firstly appears around the temperature of 1117 °C, which corresponds to the peak temperature for γ′ phase solid-dissolved into γ phase. Then, the second endothermic peak (Endo.2) appears when heated to 1349 °C, which corresponds to the peak temperature for the melting of γ′-γ eutectic phases. Subsequently, when heated to 1356 °C in the following heating procedure, another unobvious endothermic peak (Endo.3) appears, which can be identified as the peak temperature for γ phase melting. During the continuous heating higher than 1356 °C, the solid γ phase will be gradually melted into liquidoid. Thus, it can be observed that the peak temperatures for melting of γ′-γ eutectic and γ phase are very close. According to the above results, the γ′-γ eutectic is characterized as dominating γ phase with some dotted γ′ precipitates, so the closed melting temperatures indicated by Endo.2 and Endo.3 can be attributed to their similar phase constituent.

View original graphic| Download| PPT slide

Fig. 5   DSC results of as-cast Ni₃Al-based superalloy (Exo. and Endo. represent exothermic and endothermic peaks, respectively)

For the subsequent cooling process from 1500 °C (i.e., the solidification process), it exhibited four apparent exothermic peaks. An exothermic peak (Exo.1) firstly arises around the temperature of 1348 °C, and the exothermic peak can be identified as the peak temperature for γ phase nucleation from liquidoid. Compared to the heating process, the peak nucleation point for γ phase (1348 °C) is slightly lower than its peak melting point (1356 °C). Afterward, a second exothermic peak (Exo.2) arises when cooled to around 1326 °C, which corresponds to the peak temperature for the generation of γ′-γ eutectic structure from residual liquidoid. Then, a distinct exothermic peak (Exo.3) emerges around 1190 °C, based on the above TEM results; it can be inferred to the peak temperature for the cuboidal γ′ phase precipitation (Figs. 2c, 3a) from γ phase, which can be defined as γ′_I. At last, the fourth exothermic peak (Exo.4) appears around 1043 °C. Due to the results presented in Fig. 3, nanoscale γ′ particles are dispersedly distributed within the γ-phase channels between two cuboidal γ_′I precipitates, which can be regarded to precipitate behind γ′I. Herein, the nanoscale γ′ particles are defined as γ′II, and the exothermic peak around 1043 °C can be explained as the peak temperature for the precipitation of γ′_II phase. Besides, an obvious endothermic peak appears around 1166 °C, as marked by the asterisk on the cooling curve, which is unknown and needs further confirmation.

3.2.2 Precipitation Behavior of Intermetallic Phases During Solidification Process

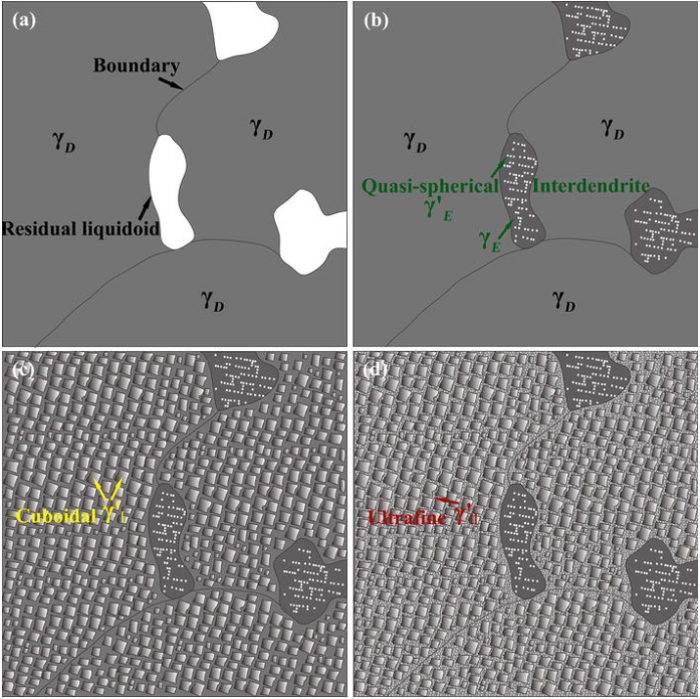

Based on the above experimental results of the as-cast Ni₃Al-based superalloy, the precipitation process of intermetallic phases during solidification has been determined and interpolated by the schematic diagrams shown in Fig. 6. When cooled to the temperature lower than the onset temperature for γ phase nucleation, a portion of liquidoid will be transformed into γ_D phase, leading to the generation of dendrite. Meanwhile, the residual liquidoid will be surrounded by the γ_D phase, as indicated in Fig. 6a. As the temperature lowers to eutectic line, the residual liquidoid is transformed into interdendritic phases, which is identified as the eutectic structure consisting of dotted quasi-spherical γ′E coupled with γ_E phase, and part of the quasi-spherical γ′E precipitates seem to exhibit linear arrays in orientation, as presented in Fig. 6b.

View original graphic| Download| PPT slide

Fig. 6   Schematic diagrams for precipitation process of intermetallic phases during solidification in as-cast Ni₃Al-based superalloy (γ_D: dendritic γ phase firstly precipitated from the liquidoid; γ′_E: quasi-spherical eutectic γ′ phase precipitated from the residual liquidoid, γ_E: eutectic γ phase precipitated from residual liquid, γ′I: the primary cuboidal γ′ phase precipitated from γ_D phase, γ′II: ultrafine secondary γ′ phase precipitated from the γ_D-channels): a first generation of γ_D dendrite from liquidoid near 1348 °C; b subsequent transformation of γ′_E-γ_E interdendrite from the residual liquidoid near 1326 °C; c precipitation of cuboidal γ′_I phase from γ_D dendrite near 1190 °C; d precipitation of nanoscale γ′_II phase from the γ_D-channels near 1043 °C

Afterward, it primarily involves the precipitation of γ′ phase in the dendritic region, i.e., the γ_D phase. Once it decreases to the onset temperature for γ′ phase near Exo.3, γ′ phase will be motivated to precipitate from the γ_D phase. During the following continuous cooling process, plentiful γ′ nucleus is generated from the γ_D-matrix and grown rapidly in irregularly cuboidal morphology, resulting in the homogeneously distributed massive γ′ precipitates (Fig. 2c). According to the DSC results, there is a secondary exothermic peak (Exo.4) for γ′ precipitation under the temperature lower than Exo.3; therefore, the irregularly cuboidal γ′ precipitates are marked as γ′_I phase. As a consequence, part of the γ_D phase in the dendritic region is transformed into γ′I phase, as approximatively expressed in Fig. 6c. With the precipitation of γ′I phase, the original γ_D phase is divided into narrow channels located between γ′I precipitates, and when cooled to the temperature near Exo.4 (Fig. 5), the secondary γ′ phase signed as γ′II phase precipitates within the γ-channels. According to the SAD results in Fig. 3d, the ultrafine γ′II phase can be certified and is schematically displayed in Fig. 6d. Finally, microstructure of the as-cast Ni₃Al-based superalloy can be characterized as interdendritic region, i.e., γ′-γ eutectic structure consisting of γ_E phase with dotted quasi-spherical γ′E particles and dendritic region composed of quasi-cuboidal γ′_I phase surrounded by γ′_II-γ-channels.

4 Conclusions

In the present work, the as-cast microstructure of a designed polycrystalline Ni₃Al-based superalloy is characterized by OM, SEM, TEM equipped with SAD system, and the intermetallic phase transformations involved during solidification process are determined based on DSC measurements. Some important conclusions can be summarized as follows:

1.The as-cast microstructure of the Ni₃Al-based superalloy is mainly composed of 80.63 vol% dendritic and 19.37 vol% interdendritic phases. The dendrite is identified as quasi-cuboidal γ′_I phase connected by γ-channels where ultrafine γ′_II particles are distributed, and the interdendrite is determined as γ′-γ eutectic structure consisting of γ_E phase with dotted quasi-spherical γ′_E particles.

2. During solidification, the dendrite firstly generated from liquidoid near 1348 °C; subsequently, the residual liquidoid will be transformed into interdendritic phases around 1326 °C. Afterward, γ′ phase will precipitate from dendritic γ-matrix with two-stage characteristics, resulting in the distinct precipitation of γ′_I and γ′_II phases when approaching to 1190 and 1043 °C, respectively.
