Towards Friction Stir Remanufacturing of High-Strength Aluminum Components

Xiangchen Meng, Yuming Xie, Xiaotian Ma, Mingyang Liang, Xiaoyang Peng, Shiwei Han, Lei Kan, Xin Wang, Sihao Chen, Yongxian Huang

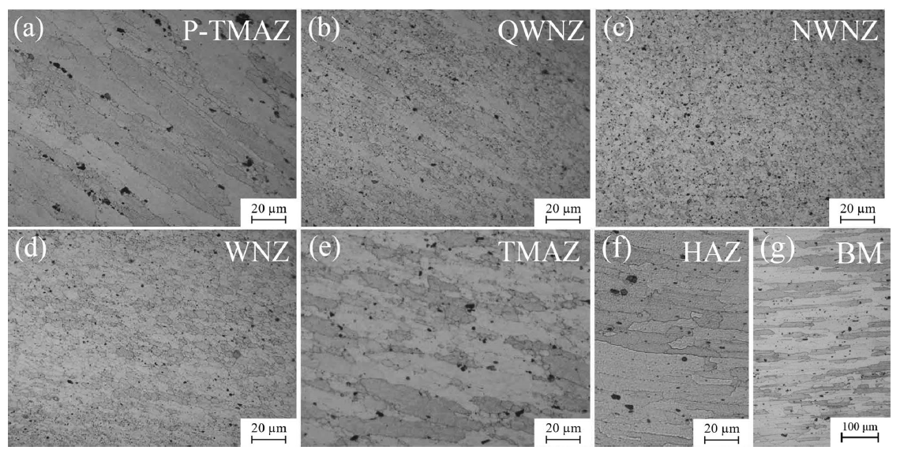

Fig. 8 Characteristics of grains in various zones using Pin 3: a P-TMAZ, b QWNZ, c NWNZ, d WNZ, e TMAZ, f HAZ, g BM
