Known as an ideal reinforcement for metal matrix composites (MMCs), graphene has drawn great attention due to its excellent mechanical and electrical properties in the past decades [1]. Moreover, graphene possesses larger specific surface area compared with carbon nanotubes, which results in much more effective load transfer and makes it a better reinforcement for composites [2]. Therefore, graphene and its derivatives have been widely used for the reinforcing of all kinds of MMCs with improved mechanical and functional performance in recent years [2,3,4,5,6]. For instance, graphene nanoplates (GNPs)-reinforced aluminum matrix composites prepared by Shin et al. [2] show superhigh tensile strength. Also, using a disintegrated meld deposition method, 3 wt% GNPs was dispersed into the AZ61 magnesium matrix and resulted in significant improvement in room temperature mechanical properties [3]. And improved compressive strength was achieved by the introduction of graphene in the work of Yang et al. [4]. Furthermore, the thermal and electrical conductivity as well as the mechanical properties of copper could also be enhanced by introducing graphene in the matrix [5,6,7]. However, the poor wettability between graphene and copper usually results in a poor cohesion strength and negligible load transfer at copper/graphene interface [8], so that the potential of graphene could not be fully realized. Thus, the post-treatment process was conducted to improve the interfacial bonding between graphene and copper matrix in the work of Saboori et al. [9] and improved densification and mechanical properties were achieved then. Furthermore, it is found that the Cr₇C₃ layers formed at the graphene-CuCr interface could dramatically improve the interfacial bonding of the composites, also [8]. Tang et al. [10] and Zhang and Zhan [11] planted Ni and Cu nanoparticles on graphene and then improved wettability and reinforcing effect were obtained. These all inspire us that appropriate interfacial modification could be significant in graphene-reinforced copper matrix composites.

However, the secondary processed chemical plating is usually required for the synthesis of metal modified graphene [10, 11], which is really a tedious process and adverse to the tight integration of graphene and metal plating. In addition, the graphene used in most of the studies was prepared by the Hummers’ method or the mechanical exfoliation method, which is usually with high cost and low productivity. By contrast, a one-step bottom-up strategy we proposed recently [12] could be a good choice for the synthesis of nickel nanoparticles modified GNPs aiming at a high production efficiency and tight interfacial bonding between graphene and nickel nanoparticles. Moreover, this method allows the synthesis and modification of GNPs in one step, which is more facile, time-saving, low-cost, and suitable for mass production.

Since the strengthening effect of the GNPs synthesized by this bottom-up method has been verified in aluminum matrix [12], it is expected to play a strong enhancement effect in copper matrix. Thus, in this study Ni-modified graphene nanoplates (Ni-GNPs) were synthesized with the bottom-up method and then introduced into Cu matrix by the molecular-level mixing (MLM) method [13] followed by hot-pressing. Notably, nickel salt was changed in this work in order to expand the applicability of the bottom-up method. As a result, copper matrix composite reinforced with 0.33 wt% Ni-GNPs shows obviously improvement in mechanical properties, demonstrating that the Ni-GNP prepared by the novel method is also an effective reinforcement for copper. Meanwhile, the microstructures of the composite were carefully characterized and the strengthening mechanisms were analyzed and discussed.

For the synthesis of Ni-GNPs, the bottom-up strategy based on spray-drying and chemical deposition was used. Nickel chloride, glucose and sodium chloride (99.9% in purity) with a certain ratio were dissolved in deionized water and then dried by spray-drying. The as-obtained precursors were then heat-treated at 730 °C in H₂ atmosphere for 2 h. Ni-GNPs powder was obtained after washing the NaCl away by deionized water. Subsequently, copper matrix composite powders containing 0.33 wt% of Ni-GNPs were fabricated by MLM method, followed by a hot-press sintering approach at 800 °C for another an hour. For comparison, pure Cu and reference sample containing 0.33 wt% of Ni nanoparticles were also prepared with the same process. (The schematic diagram for the preparation procedure is shown in Fig. S1, and more details about the preparation process are provided in Supporting Information.)

Raman spectra were conducted using a Renishaw inVia Raman microscope. The morphology of the samples was observed by a Hitachi S-4800 field emission scanning electron microscopy (SEM). And transmission electron microscopy (TEM) was performed on a JEOL JEM-2100F microscope. In addition, the tensile tests were carried out on a LLOYD EZ20 tensile tester at an initial strain rate of $8.3 \times 10^{ - 4} \text{s}^{ - 1}$.

A self-assembled structure with several stacked NaCl crystals covered with an ultrathin glucose/NiCl₂ mixture film was obtained after spray-drying, as shown in Fig. 1a. Then during the heat treatment process, glucose was decomposed gradually and served as the carbon source while NiCl₂ was reduced into Ni nanoparticles. Thereafter, the amorphous carbon atoms got graphitized gradually under the catalysis of Ni nanoparticles at high temperatures, and Ni-GNPs then formed on the surfaces and interfaces of NaCl crystals, which can be clearly observed in Fig. 1b. Finally, foliated structural GNPs decorated with Ni particles were obtained after removing NaCl, as shown in Fig. 1c. The structure of Ni-GNPs powder was then further studied by the TEM, as shown in Fig. 1d-f, from which we can find that Ni nanoparticles with diameters of approximately 80 nm and 10 nm were anchored on the surface of GNPs uniformly, which is well consistent with the results of SEM. Figure 1f shows the edge of GNP in a high magnification, where the layer structure of GNP could be observed clearly and the thickness of the synthesized GNPs is less than 10 nm. It is noteworthy that those Ni nanoparticles still combine tightly with the GNPs even after a longtime sonication (1 h), indicating the strong bonding between Ni and GNPs as well as the high structural stability of Ni-GNPs.

Raman spectra of Ni-GNPs powders and the bulk Ni-GNPs/Cu composite are shown in Fig. 2a, where peaks around 1340 and 1600 cm^-1 corresponding to the D band and G band of graphene, respectively, could be found for both materials. Usually, D band represents the structural defects of graphene, while G band belongs to the typical ordered graphite structure attributed to the vibration of sp²-bonded carbon [14]. Therefore, the intensity ratio of D band to G band (I_D/I_G) was often used to estimate the defects presented in graphene [10, 11]. As shown in Fig. 2a, the I_D/I_G values of Ni-GNPs powders and bulk composite are approximately 0.80 and 0.73, respectively, indicating that the number of defects in GNPs was reduced after hot-pressing. This is mainly due to the higher treatment temperature during hot-pressing as well as the secondary catalysis of copper matrix, for Cu is also a very excellent catalytic substrate and has been widely used for the growth of graphene [15, 16]. Additionally, it can be found that the G band of GNPs in bulk composite exhibits a red-shift compared with that of Ni-GNPs powders, revealing a significant electronic interactions between GNPs and copper matrix [10, 17], which is beneficial to the interfacial bonding and then contributes to the load transfer effect. Moreover, the SEM image of composite powders obtained after MLM process is shown in Fig. 2b. GNPs were surrounded by CuO tightly, as marked with a white arrow, indicating good bonding between CuO and Ni-GNPs. (The confirmation of CuO is based on the XRD patterns as shown in Fig. S2, Supporting Information.) Furthermore, the GNPs could be observed in the bulk composite without any aggregation after etching the surface with FeCl₃ solution (Fig. 2c).

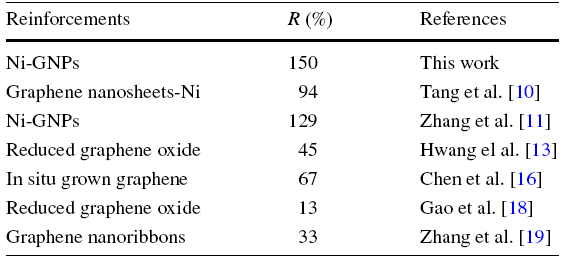

The engineering strain-stress curves are shown in Fig. 2d, from which we can see that the composite exhibited a yield strength of 190 MPa, which was improved by 90% compared with that of pure copper (100 MPa), while the reference sample containing 0.33 wt% Ni only showed slight improvement. Therefore, it can be concluded that the significant improvement in strength is mainly caused by the addition of GNPs instead of Ni particles. Moreover, it is worth noting that only 0.33 wt% of Ni-GNPs was introduced and resulted in a superhigh yield strength, demonstrating a high reinforcing efficiency of Ni-GNPs in copper matrix. To make it clear, the reinforcing efficiency R (defined as R = (σ_c-σ_m)/Vσ_m, where σ_c, σ_m and V are the strength of composite, strength of matrix and the volume percentage of reinforcement) of the Ni-GNPs/Cu composite was calculated and compared with other works [10, 11, 13, 16, 18, 19], as listed in Table 1. (Since the amount of GNPs in Ni-GNPs is unknown, a median 50% was used for the calculation.) As listed in Table 1, all the Ni modified graphene structures show very high R values compared with the unvarnished graphene, indicating the modification of Ni on the surface of graphene could indeed enhance the interfacial bonding.

The grain size and grain orientation of pure Cu and Ni-GNPs/Cu composite were determined by the electron back-scattered diffraction (as shown in Fig. 3). More than 1000 grains were counted and the statistical graphs of grain size distribution are shown in Fig. 3c and d. Both show equiaxed grains, while the average grain size of the composite and pure copper is about 2.17 and 7.95 μm, respectively. Obvious grain refining effect was achieved by introducing Ni-GNPs due to the impeding effect of GNPs to the grain coarsening during thermal processing [12]. According to the Hall-Petch relation, the finer grains contribute to higher strength for the increased grain boundaries and improved grain boundary strengthening [20].

In addition, the microstructure of the Ni-GNPs/Cu composite was also investigated by TEM. As shown in Fig. 4a, GNPs were marked by white circles while the grain boundaries were marked by white dashes. It is obvious that the GNPs distributed inside the matrix uniformly, which could impede the movement of dislocations and bridge the cracks, leading to an improved strength of the composite [19, 21]. Figure 4b shows the high resolution TEM image of the selected area in Fig. 4a. A smooth transition zone could be found, and the interface is free of impurities, voids or gaps, indicating good bonding between GNPs and copper matrix. Since nickel was not observed during the TEM tests, it was further confirmed by the energy-dispersive spectroscopy (EDS), as shown in Fig. 4c and d. By considering the infinite solid solution of copper and nickel, it was believed that Ni dissolved in Cu matrix and Cu-Ni solid solution was formed near the interface of GNPs and Cu matrix. The formation of Cu-Ni solid solution contributes to reduce the interface energy between GNPs and Cu and, in turn, strengthens their interfacial bonding [10]. The strong interfacial bonding ensured high load transfer efficiency in composites, which might be one of the reasons for the improved yield strength.

In summary, Ni-GNPs were synthesized by a one-step bottom-up method using nickel chloride, glucose and NaCl as the raw materials. The universality of this bottom-up method is expanded and verified. Ni-GNPs fabricated by this method show great strengthening effect in copper matrix composites, which is mainly due to the improved load transfer effect and the grain refine effect. The strength was expected to be further improved by improving the content of Ni-GNPs, and our future work will focus on the optimization of the processing parameters, microstructure of the Ni-GNPs powder, with the aim of gaining better performance. Some other matrix would be utilized, and further explorations on the strengthening mechanisms would be taken.
