Energy crisis and environmental pollution are the global problems, which have attracted the attention of all in general and researchers in particular. Upsetting levels of these issues demand increasingly stringent regulations that forced scientists to look for the more efficient techniques to solve the energy and environmental problems. Semiconductor-mediated photocatalysis, an emerging technique belonging to the class of advanced oxidation processes (AOPs), is known to be a right process to address the global concerns such as energy conservation and environmental pollution [1, 2]. The exploration of materials to identify effective photocatalysts for environmental purification and energy production has grown into an intense area of research in the past two decades. The study on semiconductor-based photosensitive materials for solar hydrogen production was initiated by the report of TiO₂-based photoelectrochemical cell by Fujishima and Honda [3]. Subsequently, the significance of semiconductor photocatalysis for the degradation of harmful organic compounds was also recognized for environmental remediation [4, 5, 6, 7]. It is noticed that most of the reported semiconductor materials are having bandgap energy > 3.0 eV and exhibiting photocatalytic activity under UV irradiation only. In this context, different strategies have been followed to prepare photocatalysts with bandgap energy of < 3.0 eV for the improvement of visible photon absorption [8, 9]. One way of improving the visible light-driven photoactivity of a semiconductor is by reducing the bandgap energy through anion or cation substitution [10, 11]. Substitution of oxygen by nitrogen/sulphur/fluorine in the lattice brings a change in the band structure due to the overlapping of 2p orbitals of dopant with oxygen 2porbitals and leads to a reduction in the bandgap energy [12].

A substantial volume of work on photocatalysis relates to binary and ternary oxides only [13, 14]. However, the materials other than oxides such as phosphates, borates and sulphates have been less investigated in the context of photocatalytic applications [15, 16, 17, 18]. Particularly, alkali metal phosphatoantimonates have been the subject of intense interest due to their structural, ion-exchange and ionic conductivity properties [19]. Piffard et al. have reported a series of potassium phosphatoantimonates, K-O-Sb^v-P^v [20, 21, 22, 23, 24]. The basic building units, SbO₆ octahedra and PO₄ tetrahedra, of these systems are associated in different ways giving rise to the one-dimensional (1D), two-dimensional (2D) or layer-type and three-dimensional (3D) tunnel-type network structures. Among these, layer-type and tunnel-type phosphates are exhibiting good ionic conductivity, ion-exchange property and ability to accommodate radiative cations in the lattice [20, 22, 23]. However, photocatalytic applications of K-O-Sb^v-P^v systems have not been exploited, despite their alluring properties which are more favourable for photocatalytic applications. Recently, we have reported the effect of cation/anion co-doping on the photocatalytic performance of Na₃SbO(PO₄)₂, a phosphate in the Na-O-Sb-P system with layer structure [25]. In the present investigation, an attempt is made to substitute the anion (O^2-) partially by N^3-, in one of the K-O-Sb^v-P^v systems, KSb₂PO₈, and study their photocatalytic properties against the degradation of organic dyes.

The parent material, KSb₂PO₈ (KSbPO), is prepared by solid-state reaction method as reported [24]. Analytical grade chemicals KNO₃, Sb₂O₃ and NH₄H₂PO₄ are used as starting materials. Stoichiometric amounts of all the reactants were weighed and ground in an agate mortar for one hour using spectral grade acetone followed by sequential heating in a muffle furnace. The samples are initially heated to 200 ° C for 5 h to enable the decomposition of ammonium dihydrogen phosphate and potassium nitrate. The resultant powder is ground for one hour and sintered in air at 920 ° C for 12 h for densification.

The N-doped KSb₂PO₈ is obtained by heating a mixture of KSbPO and urea at 400 ° C for 2 h in a muffle furnace in air. The weight ratio of KSbPO to urea is 1:4. The resultant powder is washed several times with deionized water to remove excess unreacted urea. The colour of the N-doped KSbPO is found to be light yellow and designated as KSbPON.

The parent material, KSb₂PO₈ (KSbPO), is prepared by solid-state reaction at 920 ° C/12 h. The structure of KSb₂PO₈ can be described as the linkage of PO₄ tetrahedra with SbO₆ octahedra sharing vertices or edges. The SbO₆ octahedra share both corners and edges and are linked to the PO₄ tetrahedral via corners as shown in Fig. 1. Each tetrahedral PO₄ unit is connected to four SbO₆ octahedra units. It was reported that K⁺ ions present in this structure cannot be exchanged with the other cations due to its highly close-packed structure [20, 21, 22, 23, 24]. Our attempts to exchange K⁺ with other mono- or di-valent ions were also unsuccessful. As mentioned earlier, the bandgap energy can also be modulated by anion doping. So, in the present investigation, an attempt is made to substitute N^3- into KSbPO lattice. A solid-state method is employed using urea as a nitrogen source. It is well known that during the nitrogen doping by ceramic method (at 400 ° C) there is a possibility of (1) carbon nitrogen (CN)-based polymeric products entering into lattice [27, 28], and (2) deposition of nitrites and hyponitrites on the surface [29]. These nitrogen-based products can be detected by powder XRD and IR techniques.

Fig. 1

	Figure Option ViewDownloadNew Window

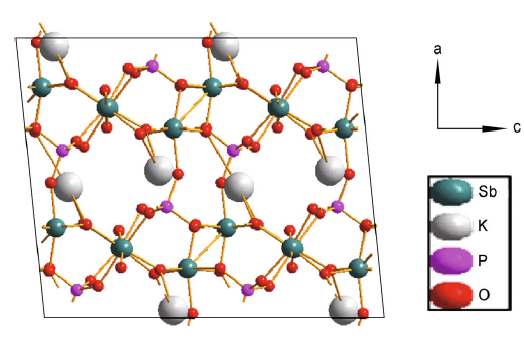

	Fig. 1 Schematic structure of KSb2PO8

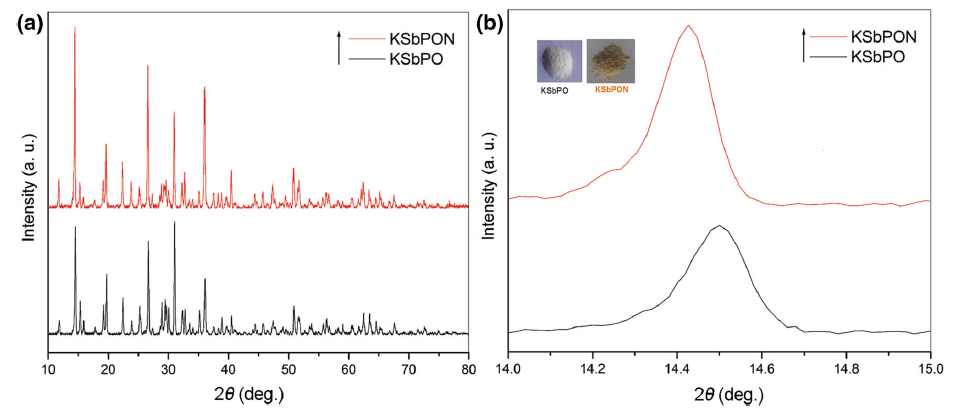

The powder XRD patterns of KSbPO and KSbPON are recorded for phase conformation (Fig. 2a). The observed XRD patterns of KSbPO show d-lines, which are consistent with reported KSb₂PO₈ data [JCPDF: 78-0492]. Li et al. [29] have reported that the powder XRD patterns of CN polymer-sensitized N-doped oxides are often characterized by a broad peak in the 2θ region 27° -32° and disappearance of majority of the parent (undoped) phospho-oxide diffraction peaks. However, in the present investigation, the powder XRD pattern of KSbPON is identical to that of KSbPO without any loss in the number of diffraction peaks, and no additional peak(s) is/are observed in the 2θ region of 27° -32° . To authenticate the incorporation of nitrogen into the KSbPO lattice, the powder patterns of KSbPO and KSbPON are plotted on an expanded scale. The diffraction peaks of KSbPON show a systematic shift towards lower 2θ value compared to that of KSbPO (Fig. 2b). These observations indicate the substitution of nitrogen into the KSbPO lattice. The unit cell parameters of KSbPO and KSbPON are refined by least square fitting the powder data, using POWD software to obtain their unit cell parameters. Both samples are found to crystallize in a monoclinic lattice with Cc space group. The observed and calculated d-values along with their hkl values for the KSbPO and KSbPON are given in Table 1. The obtained unit cell parameters are listed in Table 2. The small variations in unit cell lengths and unit cell volume of KSbPON are due to the partial replacement of oxygen by nitrogen in SbO₆ octahedra and/or PO₄ tetrahedra of KSbPO. Since the ionic radius of N^3- (0.171 nm) is greater than that of O^2- (0.140 nm), partial substitution of O by N should increase the unit cell parameters. The average crystallite size of both powders was calculated from the Scherrer’ s formula [30]

where t is the thickness in angstrom (Å ) and corresponds to the crystallite diameter assuming a spherical shape; λ is the wavelength of the X-ray used; θ is the Bragg angle and β is the full width at half maximum measured in radians of d-line in the powder XRD pattern. The crystallite sizes of the KSbPO and KSbPON were found to be 55 and 49 nm, respectively.

Fig. 2

	Figure Option ViewDownloadNew Window
	Fig. 2 XRD patterns of a KSbPO and KSbPON, b expanded XRD patterns of KSbPO and KSbPON. Insets show the colour of the samples

Table 1

Table 1

Table 1 Observed and calculated d-values along with their hkl values for the KSbPO and KSbPON h k l KSbPO KSbPON dobs dcal dobs dcal 0 0 2 7.4637 7.4634 7.4715 7.4737 1 1 0 6.1258 6.1257 6.1319 6.1334 2 0 0 6.1151 6.1259 -1 1 1 5.7711 5.7712 5.7752 5.7775 1 1 1 5.5684 5.5685 5.5705 5.5764 -2 0 2 4.9851 4.9849 4.9906 4.9906 1 1 2 4.6211 4.6212 4.6223 4.6281 2 0 2 4.5117 4.5109 4.5117 4.5198 -1 1 3 3.9621 3.9620 3.9645 3.9664 1 1 3 3.7698 3.7694 3.7738 3.7752 0 2 0 3.5387 3.5388 3.5444 3.5425 -2 0 4 3.3400 3.3399 3.3426 3.3434 -1 1 4 3.2616 3.2615 3.2716 3.2712 1 1 4 3.1172 3.1173 3.1251 3.1220 3 1 2 3.0895 3.0896 3.0937 3.0952 2 0 4 3.0576 3.0575 3.0583 3.0562 -2 2 1 3.0309 3.0309 3.0351 3.0344 2 2 1 2.9706 2.9707 2.9902 2.9895

Table 1 Observed and calculated d-values along with their hkl values for the KSbPO and KSbPON

Table 2

Table 2

Table 2 Unit cell parameters and volumes of KSbPO and KSbPON Samples a(Å ) ± (0.005) B(Å ) ± (0.005) c (Å ) ± (0.005) β (° ) Vol (Å )3 KSbPO 12.29 7.078 15.00 95.83 1298.78 KSbPON 12.31 7.08 15.02 95.78 1304.15

Table 2 Unit cell parameters and volumes of KSbPO and KSbPON

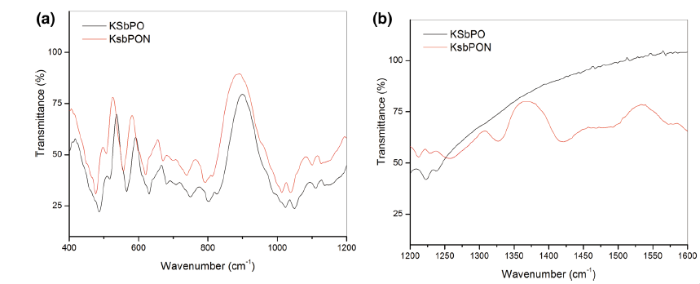

FTIR spectra of KSbPO and KSbPON are shown in Fig. 3. The vibrational bands observed in FTIR spectrum of KSbPO are similar to the reported data [31]. The vibrational bands observed for N-doped KSbPO vary significantly from the parent KSbPO in two ways. First, the band positions in the 400-1250 cm^-1 region have been shifted towards lower wavenumbers. Second, the new bands in the region 1250-1600 cm^-1 have appeared. The shift of KSbPON vibrational bands towards lower wavenumber also suggests that some oxygen atoms in KSbPO lattice are substituted by nitrogen atoms. When Sb-O (P-O) bonds are replaced by Sb-N (P-N), the increase in bond length of Sb-N (P-N) is observed (due to a higher ionic radius of N^3-), and this leads to a decrease in the force constant [32]. Lower force constant results in a lower stretching or bending vibrational frequency. Thus, the observed band positions are consistent with substitution of nitrogen into the lattice. The new bands around 1260, 1330, 1425 and 1490 cm^-1 are attributed to the presence of interstitial N-O species in the form of hyponitrite and nitrite on the surface of KSbPON [29]. The vibration bands observed for KSbPO and KSbPON are listed in Table 3. The presence of water in KSbPON is further supported by thermogravimetric analysis (TGA). Thermogravimetric (TG) curve of the KSbPON is shown in Fig. 4. This curve is characterized by two weight loss regions. In the temperature region 30-300 ° C, the weight loss is 1.8%. This weight loss may be attributed to the adsorbed and crystalline water of the lattice. The observed weight loss (1%) in 300-500 ° C region indicates the decomposition of chemisorbed unstable species such as hyponitrite and nitrite.

Fig. 3

	Figure Option ViewDownloadNew Window

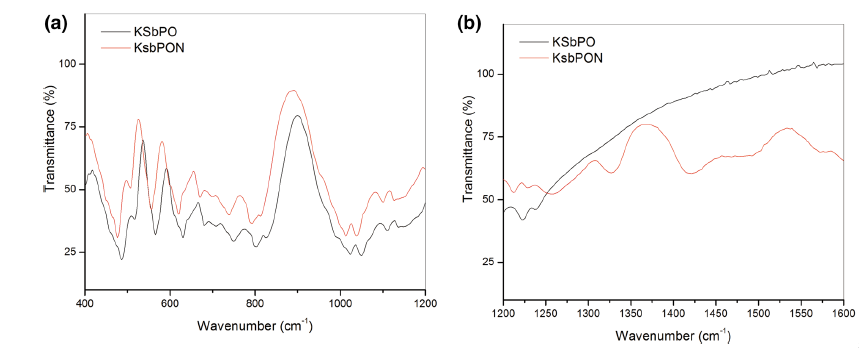

	Fig. 3 FTIR spectra of KSbPO and KSbPON in the regions a 400-1200 cm-1, b 1200-1600 cm-1

Table 3

Table 3

Table 3 Vibration bands observed for KSbPO and KSbPON (cm-1) KSbPO KSbPON 487 473 517 503 567 551 628 617 677 665 744 734 799 787 821 814 1021 1009 1051 1038 1106 1098 1134 1123 1221 1207 - 1260 - 1330 - 1425 - 1490

Table 3 Vibration bands observed for KSbPO and KSbPON (cm-1)

Fig. 4

	Figure Option ViewDownloadNew Window

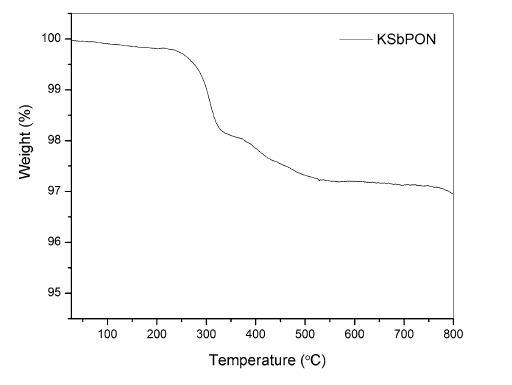

	Fig. 4 Thermogravimetric profile of KSbPON

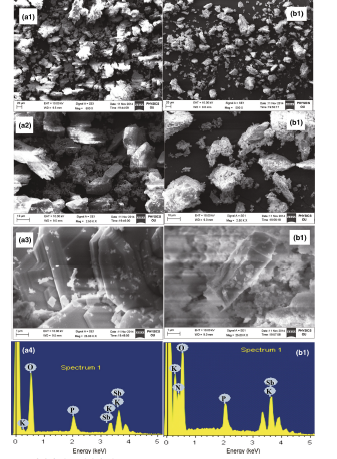

The morphological characterization of KSbPO and KSbPON is carried out using scanning electron microscopy (SEM). The SEM images of both the samples are obtained at different magnifications (1, 10 and 20 µ m). As shown in Fig. 5, it is observed that KSbPO microcrystals consist of the irregularly shaped plate-like particles. The KSbPON particles appear as rod shape with significant agglomeration. Further, the substitution of N^3- ions into KSbPO lattice is verified by recording their energy-dispersive spectra (EDS). The EDS profiles of both the samples are also shown in Fig. 5. The weight ratio of K, Sb and P obtained from EDS data for KSbPO was noticed to be close to expected values (i.e. K:Sb:P = 1:2:1) confirming the molecular formula as KSb₂PO₈. The presence of nitrogen in EDS of KSbPON indicates its substitution into KSbPO lattice, and the molecular formula of KSbPON can be written as KSb₂PO_8-x N _y . The weight percentage of nitrogen is measured quantitatively by O-N-H analysis. The weight percentage of nitrogen is found to be 22.08.

Fig. 5

	Figure Option ViewDownloadNew Window
	Fig. 5 SEM-EDS of a1-a4 KSbPO and b1-b4 KSbPON

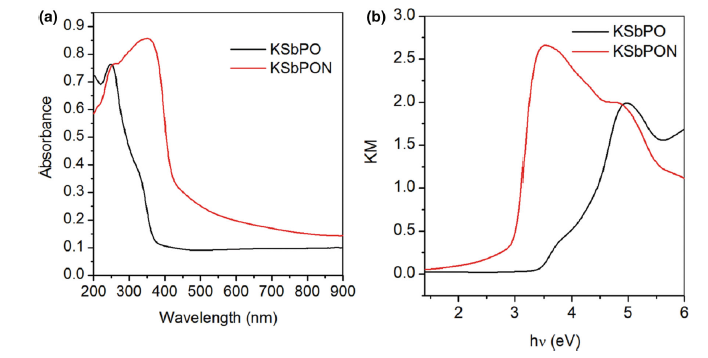

UV-Vis diffuse reflectance spectroscopy is used to study the optical properties of the KSbPO on nitrogen doping. Figure 6a, b shows the UV-Vis absorption and Kubelka-Munk (KM) plot of KSbPO and KSbPON, respectively. The absorption spectra show that the KSbPON has higher light absorption intensity and red-shifted absorption edge compared to the KSbPO is about 85 nm. The change in colour of KSbPO from white to light yellow upon the nitrogen doping also endorsed the red shift of the absorption edge (Fig. 2b, inset). The bandgap energy of both the samples was estimated from a KM plot [(Khν )^1/2 versus hν , where and hν is the energy of absorbed light). The optical bandgaps of the KSbPO and KSbPON are 3.35 and 2.72 eV, respectively. This shows that the nitrogen doping acted as a bandgap modifier due to the contribution of its 2p orbitals to the valence band consisting of oxygen 2p orbitals [33].

Fig. 6

	Figure Option ViewDownloadNew Window
	Fig. 6 UV-Vis a absorption and b EDS profiles of KSbPO and KSbPON

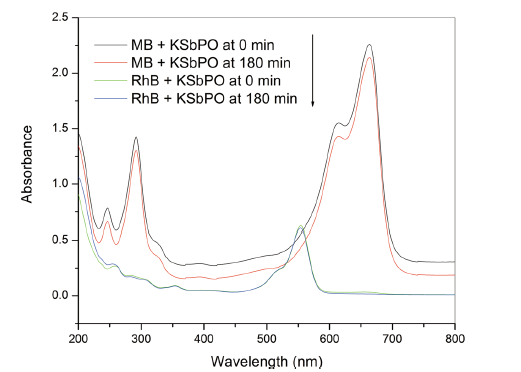

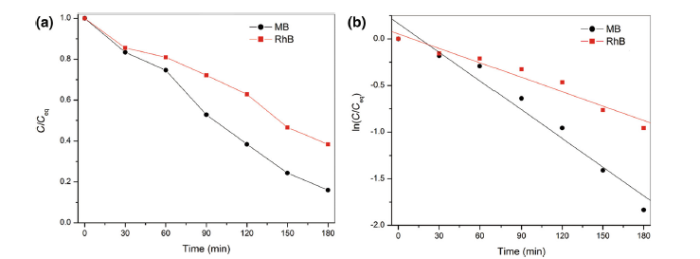

The photocatalytic activities of KSbPO and KSbPON are evaluated by the degradation of MB and RhB under visible light irradiation. It is observed that the KSbPO has not shown any activity towards MB and RhB degradation (Fig. 7). This may be due to its higher bandgap energy (3.35 eV), and in the present experimental set-up, the light (tungsten lamp) energy is much lower than 3.35 eV. On the other hand, KSbPON has shown activity against both MB and RhB degradation. Figure 8a shows the temporal changes in the concentration of MB and RhB organic dyes in the presence of KSbPON catalyst upon visible light illumination. The degradation of MB/RhB is measured by following the variations in maximum absorption in their UV-visible spectra at 664/554 nm. Before the irradiation, the KSbPON material is kept in the dark chamber to attain the adsorption-desorption equilibrium. In the presence of light illumination, it is noticed that the degradation of MB/RhB is increased with an increase in the irradiation time (Fig. 8a). The extents of MB and RhB degradation after 180 min of irradiation observed for the KSbPON are 82% and 58%, respectively.

Fig. 7

	Figure Option ViewDownloadNew Window
	Fig. 7 UV-Vis absorption spectra of MB and RhB dye at 0 and 180 min under visible light irradiation in the presence of KSbPO

Fig. 8

	Figure Option ViewDownloadNew Window
	Fig. 8 a Variation in concentration and b first-order kinetics plots of MB and RhB with irradiation time against KSbPON

The kinetics of MB and RhB degradation in the presence of KSbPON is also studied. The degradation reaction of MB/RhB with KSbPON shows pseudo-first-order kinetics (Langmuir-Hinshelwood model) [34]. The results are nearly steady with linear equation

For the pseudo-first-order reaction, the half-life time (t_1/2) can be determined according to the equation

Figure 8b represents a linear correlation (R²), suggesting that the degradation reaction follows the first-order kinetics. The slope of the linear line gives the first-order rate constant. The kinetic parameters (k, t_1/2) for both photocatalysts are given in Table 4.

Table 4

Table 4

Table 4 Kinetic parameters, rate constant (k) and half-life time (t1/2) of KSbPON in the first-order photocatalytic reaction Photocatalyst (dye) First-order rate constant, k ( min-1) Square of correlation coefficient R2 t1/2(min-1) KSbPON (MB) 0.0102 ± 0.0009 0.962 68 KSbPON (RhB) 0.0051 ± 0.0005 0.952 136

Table 4 Kinetic parameters, rate constant (k) and half-life time (t1/2) of KSbPON in the first-order photocatalytic reaction

The degradation of organic pollutants on the surface of a catalyst is principally initiated by illumination of light of energy equal to or greater than the bandgap energy of catalyst, resulting in the promotion of the valence band electron into its conduction band. The formation of an electron (in the conduction band) and hole (in the valence band) is the first step in the mechanism of photocatalysis. These photoinduced electron and hole could migrate to the surface to react with the adsorbed reactants in the desired process, or undergo undesired recombination. Therefore, the generation and separation of photoinduced electron-hole pairs are the key factors in a photocatalytic reaction. They can involve in various oxidation and reduction reactions with adsorbed species such as H₂O and O₂, producing hydroxyl (· OH) and superoxide radicals, respectively. These radicals react with the dye molecules and degrade them into harmless inorganic molecules such as CO₂ and H₂O.

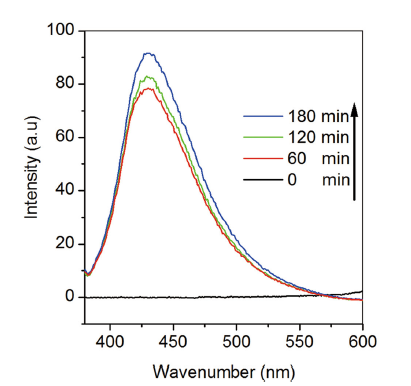

Predominantly, the degradation rate of organic dyes is directly proportional to the possibility of growth of · OH on the catalysts surface and their reaction with dye molecules. In the present investigation, the generation of · OH in the presence of KSbPON during the photoreaction is verified by a fluorescence technique using TA as a probe. The · OH species react with TA to give 2-hydroxy terephthalic acid (TAOH) which has a characteristic fluorescence signal at 426 nm. Therefore, the formation of TAOH as a result of photocatalytic hydroxylation of TA in the presence of KSbPON is used as a sign for the · OH generation. It is noticed from Fig. 9 that the fluorescence intensity at 426 nm of TA solution in the presence of KSbPON is found to increase with the rise in visible light irradiation time. Thus, the escalation in fluorescence intensity with the rise in visible light irradiation time for KSbPON catalyst indicates generation of · OH (or formation of TAOH) [35].

Fig. 9

	Figure Option ViewDownloadNew Window
	Fig. 9 Fluorescence spectra of visible light-irradiated KSbPON suspensions in 3 mmol L-1 terephthalic acid (λ excitation = 320 nm)

Nitrogen-doped KSbPO is prepared by a solid-state method using urea as a source of nitrogen. KSbPON is crystallized in a monoclinic lattice. The nitrogen doping into KSbPO lattice is confirmed from (a) shift in the d-lines of powder patterns, (b) the presence of N peak in its EDS profiles, (c) change in the colour of the samples, (d) red shift in the absorption edge in UV-visible absorption spectra and (e) the presence of new IR bands in KSbPON. The bandgap energy of KSbPO is reduced about 0.63 eV over the nitrogen doping. The extents of MB and RhB degradation after 180 min of irradiation observed for the KSbPON are 82% and 58%, respectively. The photodegradation reaction of MB/RhB with KSbPON shows pseudo-first-order kinetics. The production of · OH in the presence of KSbPON during the photoreaction is confirmed by fluorescence technique using terephthalic acid (TA) as the probe.

The authors gratefully acknowledge the UGC (UPE) and DST— FIST, New Delhi, for financial assistance.
