The new type nickel-free high-nitrogen stainless steel developed by Institute of Metal Research, Chinese Academy of Science, and referred to as NFHNSS in this study was melted in a 50 kg pressurized induction furnace, followed by forging and hot rolled into steel plate with a thickness of 5 mm. Chemical compositions of the NFHNSS are given in Table 1. The steel plate was firstly annealed at 1150 ° C for 1 h, water-quenched and then cold-rolled at room temperature to obtain 20, 40, 60% reductions in thickness values.

Table 1

Table 1

Table 1 Chemical compositions of NFHNSS (wt%) C N Cr Mn Mo Si S P Fe 0.014 0.90 18.30 15.30 2.40 0.31 0.009 0.010 Bal.

Table 1 Chemical compositions of NFHNSS (wt%)

Specimens with the dimension of 10 mm × 10 mm used for microstructural observations were cut from those cold-rolled plates with different cold deformation (including the annealed steel), pre-milled successively with emery papers from No. 240 to No. 2000 grades, mirror-polished using alumina of 0.3 μ m and then electrochemical etched in 10% oxalic acid aqueous solution at 20 V for 15 s. The microstructure evolution of NFHNSS after cold deformation was also examined using transmission electron microscopy (TEM) (Philips TECNAIG²⁰, Holland) operated at 200 kV. To confirm the existing phases in different cold-rolled specimens, the XRD was carried out using a Rigaku D/max-RB diffractometer.

Dog bone-shaped flat tensile test specimens were prepared from those different cold-rolled and annealed plates with 27 mm parallel length, 7.5 mm gauge width and 25 mm original gauge length. The surface of gauge section of each specimen was treated using No. 2000 emery papers, washed with distilled water and finally cleaned in acetone and alcohol successively. Tensile tests of all specimens were conducted using a CMT 4304 type microcomputer-controlled electronic universal testing machine at a rate of 2 mm/min at room temperature. Moreover, the micro-hardness values of polished specimens with different cold deformation were measured using a Vickers hardness tester (Micromet 5103, Buehler) under a load of 0.1 kg.

The specimens with different cold deformation were embedded in araldite and polished with 2000 grit emery papers to expose an area of 1 cm² to act as working electrodes in the electrochemical experiments. Cyclic polarization tests were carried out using a computerized Gamry Reference 600 Potentiostat/Galvanostat/ZRA electrochemical system which was connected to a three-electrode cell composed of a saturated calomel electrode (SCE) acting as the reference electrode and a platinum plate used as the counter electrode. The Hank’ s solution was chosen as the electrolyte and its compositions are listed in Table 2. All cyclic polarization tests were conducted starting from -0.2 V toward the anodic direction, ending when the current density reached 0.1 mA/cm² and then scanning reversely at a scan rate of 0.2 mV/s. The initial potential was relative to open-circuit potential (OCP). It is worth noting that the temperature of Hank’ s solution was kept at (37 ± 0.5) ° C during each experiment.

Table 2

Table 2

Table 2 Compositions of the Hank’ s solution used in cyclic polarization and wear tests (g/L) NaCl KCl Na2HPO4 KH2PO4 CaCl2 MgSO4· 7H2O Glucose NaHCO3 8 0.4 0.12 0.06 0.14 0.41 0.9 0.35

Table 2 Compositions of the Hank’ s solution used in cyclic polarization and wear tests (g/L)

The 22 mm × 24 mm specimens with different thickness for sliding wear tests were cut from those cold-rolled and annealed plates by using electrical discharge method, followed by abrading on abrasive papers from No. 240 to No. 2000 and mechanical polishing to get mirror-like surfaces. Before and after each test, the specimen was cleaned in distilled water, acetone and alcohol successively, after which its weight was measured using an electronic analytical balance with sensitivity of 0.1 mg to get the wear weight loss. Pin-on-disk sliding wear tests were carried out in reciprocating motion mode using a tribometer friction-wear testing machine, and silicon nitride (Si₃N₄) balls with the diameter of 6 mm were fixed on a pin to serve as the friction counterpart. For each kind of cold-rolled specimen, all wear tests were conducted at a normal load of 10 N under three conditions which were dry wear at room temperature and corrosion-wear in distilled water as well as Hank’ s solution at the temperature of (37 ± 0.5) ° C and other test parameters for all tests are listed in Table 3. Every sliding wear test under each condition was repeated at least three times and the average of those weight losses obtained in repeated tests was calculated to obtain the final sliding wear weight loss. The wear resistance was characterized by weight loss per unit sliding distance (Δ W), which was calculated from the following equation:

(1)

where Δ W is the weight loss and L stands for the sliding distance.

Table 3

Table 3

Table 3 Parameters of sliding wear tests Parameter Sliding distance (m) Maximum linear speed (cm/s) 1/2 amplitude (mm) Frequency (Hz) Time for one experiment (min) Value 1000 15 9 2.65 174

Table 3 Parameters of sliding wear tests

After sliding wear tests, worn surfaces were observed using a Cambridge S360 scanning electron microscopy (SEM) and their micro-hardness were measured at a load of 0.1 kg. In addition, elements on the worn surfaces of the specimens tested in Hank’ s solution were determined using X-ray photoelectron spectroscopy (ESCALAB250, Thermo VG) with AlK _α radiation acting as the exciting source and the binding energy of adventitious carbon (C1 s: 284.6 eV) was taken as the reference.

Microstructures of NFHNSS specimens with different reductions in thickness are shown in Fig. 1, from which it can be seen that there were austenitic grains and many twins in the annealed specimen. After cold rolling, those equiaxial grains were deformed and the number of deformed grains and deformation bands grew larger with increasing reduction in thickness. The TEM results revealed many deformation bands together with few deformation twins in the 20% cold-rolled NFHNSS while extensive deformation twins could be observed in the 40% cold-rolled NFHNSS. In general, existence of martensite induced by strain in metastable austenitic stainless steels is easy after cold deformation [19, 20]. To confirm whether NFHNSS is stable or not, XRD of all cold-rolled specimens were carried out and the results are shown in Fig. 2; it reveals only single-phase austenite in all specimens and neither strain-induced martensite nor any other secondary phase was even introduced in the specimen with the maximum cold reduction in thickness. Nevertheless, due to grain refinement, micro-stress together with crystal deflection caused by cold rolling, the height of diffraction peaks corresponding (200), (311) and (222) crystal faces decreased gradually and that corresponding (220) crystal face became higher; full widths at half maximum intensity for all crystal faces mentioned above broadened gradually.

Fig. 1

	Figure Option ViewDownloadNew Window
	Fig. 1 Optical micrographs of NFHNSS specimens with the cold reduction of 0 a, 20% b, 40% c and 60% d in thickness and TEM images of 20% e and 40% f cold-rolled NFHNSS

Fig. 2

	Figure Option ViewDownloadNew Window

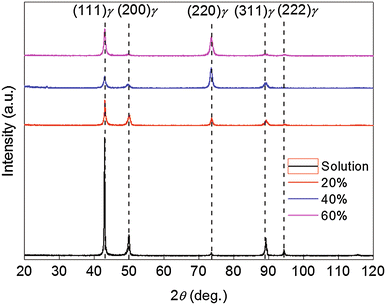

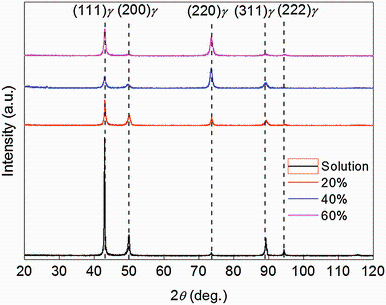

	Fig. 2 XRD patterns of all kinds of cold-rolled NFHNSS specimens

The variations in mechanical properties of NFHNSS with respect to cold reduction in thickness are shown in Fig. 3, from which one can see that the yield strength, tensile strength and hardness increased significantly while the elongation decreased gradually with the increase in cold reduction which should be attributed to the work-hardening effect. Especially, the yield strength increased almost linearly when the cold deformation changed from 0 to 60%. In addition, the difference between yield and tensile strength decreased with increasing cold reduction. According to the relationship of the stress and strain in the work-hardening region of engineering stress-strain curves of NFHNSS specimens, the work-hardening exponents for them were calculated to be 0.64, 0.22, 0.05 and 0.04, respectively, which showed a gradual decrease as the cold deformation increased.

Fig. 3

	Figure Option ViewDownloadNew Window

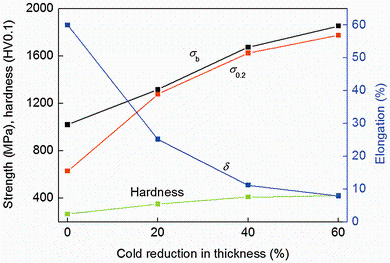

	Fig. 3 Variations in mechanical properties of NFHNSS with respect to cold reduction in thickness

The effect of cold deformation on the corrosion resistance of NFHNSS was investigated by means of electrochemical experiments, and cyclic polarization curves of all cold-rolled NFHNSSs in the Hank’ s solution are shown in Fig. 4. Figure 4 shows that the potential changed with current density in the same way for each type cold-worked NFHNSS, resulting in a relatively good overlap of these curves, which meant similar electrochemical behaviors of them and no hysteresis loop could be found in each curve, indicating a strong capacity of repassivation of NFHNSS. When comparing the pitting corrosion potentials of all kinds of cold-rolled NFHNSSs, it can be discovered that all pitting corrosion potentials were very close and just decreased slightly with respect to cold deformation.

Fig. 4

	Figure Option ViewDownloadNew Window

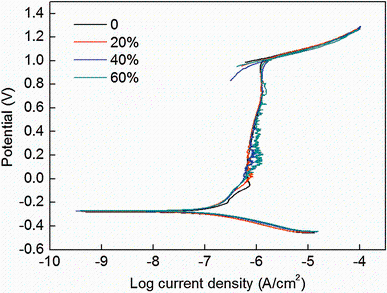

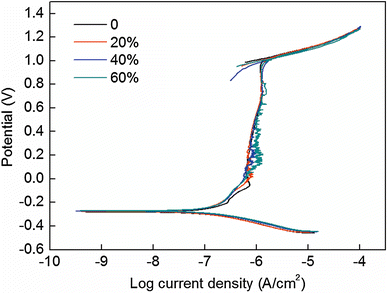

	Fig. 4 Cyclic polarization curves and pitting potentials of cold-rolled NFHNSSs in Hank’ s solution

Pin-on-disk sliding wear tests were performed without any lubricants in air, distilled water and Hank’ s solution, respectively. Figure 5 shows the variations in the wear rate (defined as weight loss per unit sliding distance) as a function of cold reduction in thickness under different lubricating conditions. As it is shown that in the dry wear tests, the wear rate decreased gradually with increasing cold deformation and then increased when the cold reduction in thickness reached 60%. The 40% cold-rolled NFHNSS got the lowest wear rate and the wear rate of the 60% cold-rolled NFHNSS was even slightly larger than that of the annealed NFHNSS. It should be noted that the differences in wear rates in dry wear tests are not very large.

Fig. 5

	Figure Option ViewDownloadNew Window

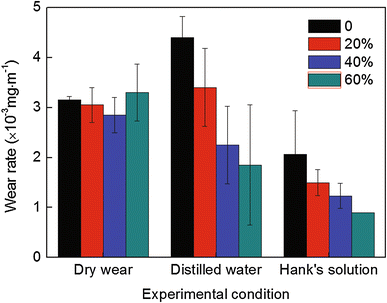

	Fig. 5 Variations in wear rate as a function of cold reduction in thickness under different lubricating conditions

Cold deformation had a significant effect on the corrosion-wear property of NFHNSS in distilled water and Hank’ s solution, as shown in Fig. 5. In distilled water, as cold deformation increased, the wear rate of NFHNSS decreased monotonically. Compared with dry wear tests, the wear rates of both annealed and 20% cold-rolled NFHNSSs became larger while those of further cold-rolled specimens lowered to some extent in distilled water. In Hank’ s solution, the effect of cold deformation on the wear rate of NFHNSS was similar to that in distilled water, but each kind of cold-rolled NFHNSS got small wear rate.

It is well known that friction coefficient is a highly systematic parameter which is closely related to many factors such as contact material, temperature, normal load, sliding speed, lubricating condition and magnetic field. In this study, effects of contact materials (meaning NFHNSS with different cold reductions in thickness against same silicon nitride balls) and lubricating conditions on the friction coefficient were investigated. Figure 6 presents the variations in friction coefficient as a function of cold reduction in thickness together with the typical friction coefficient-time curves for NFHNSS recorded in dry wear tests, distilled water and Hank’ s solution, respectively. As shown in Fig. 6a, when sliding wear tests for all kinds of cold-rolled NFHNSSs were performed under the same lubricating condition, all friction coefficients were nearly equal, while changes in the lubricating condition had some influences on the friction coefficient. The friction coefficients obtained in distilled water were the largest than those obtained in both dry wear tests and Hank’ s solution. In addition, Fig. 6b-d shows that in dry sliding wear tests, the friction coefficient fluctuated obviously with increasing experimental time, but in the distilled water and Hank’ s solution, it is kept relatively stable during tests.

Fig. 6

	Figure Option ViewDownloadNew Window

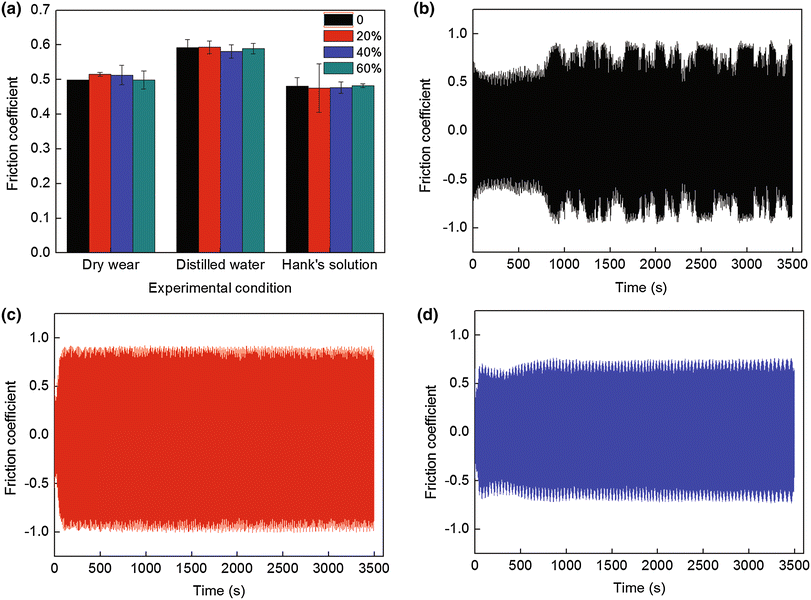

	Fig. 6 a Variations in the friction coefficient as a function of cold reduction in thickness under various lubricating conditions; the typical friction coefficient-time curves obtained in dry wear tests b; distilled water c; Hank’ s solution d

The worn surfaces after sliding wear tests were observed using scanning electron microscopy (SEM). Since all kinds of cold-rolled specimens tested under the same lubricating condition displayed similar worn surface characteristics, a typical SEM image of worn surfaces for each lubricating condition is shown in Fig. 7, respectively. As shown in Fig. 7a, broad grooves caused by hard abrasive particles and/or silicon nitride friction counterpart by means of plowing along with micro-cutting, flaking pits due to brittle appalling and some gray black wear debris resulted from oxidation were all visible, which indicated a combination of different wear mechanisms consisting of abrasive wear, brittle flaking and oxidation wear. By contrast, worn surfaces of those specimens tested in both distilled water and Hank’ s solution were relatively smoother and exhibited a large amount of narrower micro-cutting slots; the only difference between them was that a few additional small round holes caused by corrosive attacks could be observed on the worn surfaces when sliding wear tests were carried out in Hank’ s solution (Fig. 7b, c). Thus, it can be confirmed that the dominant wear mechanism of NFHNSS in distilled water was abrasive wear while that in Hank’ s solution became abrasive wear associated with some corrosive pitting.

Fig. 7

	Figure Option ViewDownloadNew Window
	Fig. 7 SEM images of the typical worn surface for the annealed specimen in the dry wear tests a, the 40% cold-rolled specimen in distilled water b and the 40% cold-rolled specimen in Hank’ s solution c

In general, surface properties such as hardness will change after sliding wear as a consequence of the effect of the contact stress combined with friction stress. To investigate the effect of the sliding wear on the hardness of worn surfaces of different cold-rolled NFHNSSs under various lubricating conditions, micro-hardness measurements were taken and the results are shown in Fig. 8. The worn surface hardness of all specimens increased to different degrees in comparison with their initial hardness. Interestingly, micro-hardness increments of those specimens tested in both distilled water and Hank’ s solution were not huge compared to those in dry wear tests and were very close; this is because solution lubricated friction pair and washed away wear debris from worn surface. In regard to specimens tested in dry sliding wear, their micro-hardness increments decreased with increasing cold deformation, which could be attributed to their decreasing capacities of work hardening [21].

Fig. 8

	Figure Option ViewDownloadNew Window

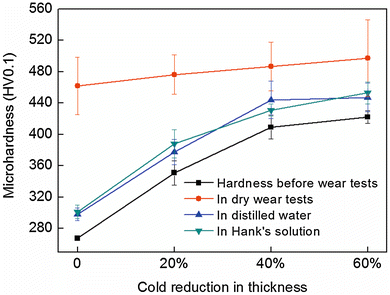

	Fig. 8 Variations in micro-hardness of wear scars for NFHNSS with respect to cold reduction in thickness under different lubricating conditions

As tabulated in Table 1, the NFHNSS used in the present study contains high nitrogen content which is 0.90%. Nitrogen is well known to be a strong austenite stabilizer which can inhibit forming of strain-induced martensite in spite of austenite undergoing large strain or cold deformation at low temperature [22]; hence, those specimens with increasing cold deformation presented only austenite without any other phases. In NFHNSS, many twins can also be observed from Fig. 1 which is mainly attributed to the effect of high nitrogen, since nitrogen can significantly reduce the stacking fault energy (SFE) of austenitic stainless steels, especially at low temperature [23] and low SFE makes the twins form easily during annealing or cold deformation.

Nitrogen can not only stabilizes the austenite, but also strengthens steels [24]. It has been established that interstitial nitrogen is the greatest solid-solution strengthening element which can cause a significant increase in yield strength without remarkably affecting ductility [25]; hence, it is understandable that the annealed NFHNSS possessed high yield strength accompanying with 60% elongation (see Fig. 3). In the present study, the yield strength of NFHNSS increased approximately linearly with cold reduction in thickness which can be explained in terms of three aspects, referring to solid-solution strengthening, grain boundary strengthening and strain hardening. NFHNSS exhibited high work-hardening capacity; the reason for this was the effect of nitrogen on the microstructures arising from cold work, which could be characterized by planar arrangement of slip dislocation and extensive twins (Fig. 1), since the higher the nitrogen content is, the shaper the planarity of dislocation slip and finer the structures will become [26, 27]. On the other hand, the high manganese content of more than 15% in weight in NFHNSS could also contribute to the formation of twins and the improved hardening behavior [28, 29].

Nitrogen-alloyed austenitic stainless steels have been proved to possess excellent localized corrosion resistance which can be ascribed to the beneficial role of nitrogen. When a nitrogen-alloyed specimen is immersed in a corrosive solution containing chloride ions, the solid-solution nitrogen atoms can improve the pitting resistance by ways [30, 31] of (1) producing ammonium ions after dissolution to increase the local PH value, which can protect the pit sites from being further corroded; (2) segregating at the interface between alloy matrix and passive film to prevent attacks of chloride ions and then a stable passive film forms; (3) formation of nitrate ions which may act as prohibitor of pitting corrosion. In this study, nitrogen with the content of 0.90% interstitially dissolved in NFHNSS was helpful for the high pitting potentials, but as the cold reduction in thickness increased, pitting potentials decreased slightly (see Fig. 4). This can be understood as follows.

Firstly, the dislocation density in NFHNSS was increased during cold rolling, resulting in higher stored strain energy; as a consequence, the corrosion driving force was increased [32]. Investigations have indicated [33] that the electron work function (EWF) decreases with increasing cold deformation no matter what the deformation modes are, which means more active electrons caused by increased dislocation density and finally leads to increasing driving force for electrochemical reactions [34]. Secondly, micro-electrochemical heterogeneity such as nonuniform dislocation distribution and micro-texture, which were helpful for the formation of microelectrodes, was introduced in deformed NFHNSSs and they might also decrease resistance against corrosion [35]. Thirdly, short-range ordered (SRO) zones existing uniformly in NFHNSS could be destroyed by gliding dislocation during cold deformation at room temperature and thus brought about accelerated corrosion [36]. These three aspects discussed above all decreased the corrosion resistance of cold-rolled NFHNSSs.

However, on the one hand, the increased defect density introduced by cold deformation would help to enhance surface diffusion of nitrogen, which can be very effective in promoting the beneficial effects of nitrogen on pitting corrosion as mentioned above. On the other hand, there exist extensive deformation twins in large-strain NFHNSS specimens (Fig. 1); the twin boundary which belongs to low-angle grain boundary has lower energy compared to high-angle boundaries and can improve the corrosion resistance [37, 38]. What is more, the NFHNSS possesses a strong capacity of repassivation, which can be confirmed by the cyclic polarization curves without hysteresis loops (see Fig. 4); therefore, although pitting can initiate on the specimen’ s surface, it is restricted from growing later. Thus, the latter three aspects play a significantly beneficial role in compensating for those detrimental effects of cold deformation on the corrosion resistance. In general, combined effects of all above factors resulted in the final corrosion experimental results.

According to Fig. 5, NFHNSS exhibited different wear behaviors under various lubricating conditions. In dry wear tests, the results indicated that the increase in cold deformation did not lead to improvements of dry wear resistance accordingly. In the case of the annealed NFHNSS specimen, its low initial hardness and poor capacity of supporting the hardened layer on the worn surface caused by work-hardening effect resulted in relatively high wear rate. As cold reduction in thickness increased, the initial hardness increased, due to which the resistance of NFHNSS against wear was enhanced, whereas the further increasing cold deformation decreased the wear resistance, which can be mainly attributed to the prior severe plastic deformation. As for those NFHNSS specimens with 60% pre-deformation, they contained a large number of dislocation and substructures, their brittleness increased and plasticity decreased simultaneously; hence, when tested under dry wear condition, they could not accommodate the shear strain introduced by wear stress; as a consequence, voids and/or micro-cracks initiated at the place near to hardened layer surface and subsequently grew swiftly because of their little abilities to release the stress concentration at the tips of cracks [21, 39], finally accelerating the formation of brittle flaking (Fig. 7). Moreover, due to the outstanding work-hardening capacity of NFHNSS, the hardness of hardened surface layers on all kinds of cold-rolled specimens was not much different from each other (Fig. 8), based on which the small differences in dry wear rates of NFHNSS can be explained. In general, it may be concluded from the dry wear results that good wear resistance depends on not only the high hardness and strength, but also suitable plasticity, ductility and work-hardening capacity.

When sliding wear tests were carried out in distilled water, since the solution contained little corrosive ions such as Cl^-, there was no corrosion affecting NFHNSS’ s wear resistance; thus, its wear behavior was mainly determined by the mechanical properties. As cold deformation increased, both initial hardness and strength of NFHNSS were improved markedly (Fig. 3) and its wear scar hardness increased as well; the ability of resisting wear of NFHNSS was enhanced gradually which resulted in reduction in wear rate. With regard to the annealed and 20% cold-rolled NFHNSSs, because of their lower hardness of wear scars in distilled water compared to that in dry wear tests (Fig. 8), their wear rates became larger and wear resistance decreased. Nevertheless, in spite of lower wear scar hardness of 40 and 60% cold-rolled NFHNSSs than that obtained in dry wear tests, no brittle flaking occurred and few wear debris remained on the worn surface, both above two led to a decrease in wear rates.

In Hank’ s solution, as discussed above, NFHNSS’ s corrosion behavior nearly remained the same as cold deformation increased, while its wear resistance was improved gradually; this is easy to understand because of the increasing initial hardness, strength and wear scar hardness. However, as for all kinds of cold-rolled NFHNSSs, their wear rates were lower in Hank’ s solution than those obtained in distilled water, although there were an amount of corrosive ions in the Hank’ s solution. Many studies have reported [40, 41, 42, 43, 44] that when sliding wear tests are performed in a corrosive solution, the whole corrosion-wear weight loss is not the simple sum of the weight loss caused only by corrosion and material loss removed by pure mechanical wear; the interaction between corrosion and wear, defined as synergistic effect, also plays an important role in corrosion-wear. In general, the corrosion can be accelerated by pure mechanical wear due to the removal of passive films, and the pure mechanical wear can be accelerated by corrosion as well by the way of promoting the initiation and propagation of cracks [45].

In the present corrosion-wear tests, the relationship between the total wear rate (R_t), pure corrosion rate (R_c), pure mechanical wear rate (R_m) and the wear rate caused by synergistic effect (R_s) can be expressed as following equation [45]:

R_t=R_c+R_m+R_s. (2)

As discussed above, the NFHNSS possesses excellent corrosion resistance, in addition, each test lasts only 174 min; hence, R_c is negligible. Equation (2) changes as

R_t=R_m+R_s. (3)

The wear rates obtained in distilled water can be regarded as R_m, so R_s can be calculated using following equation:

R_s=R_t-R_m. (4)

According to Eq. (4) and Fig. 5, R_s are obtained and shown in Fig. 9. As shown, R_s are negative for different cold-rolled NFHNSS specimens and increase with increasing cold reduction. Therefore, negative R_svalues indicated that there were other factors which played a beneficial role in decreasing the corrosion-wear rates.

Fig. 9

	Figure Option ViewDownloadNew Window

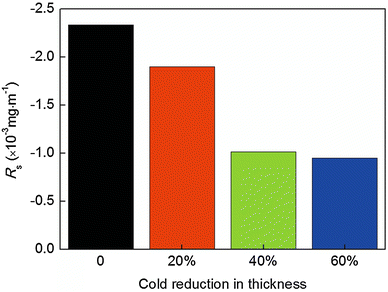

	Fig. 9 Rs of different cold-rolled NFHNSSs

The X-ray photoelectron spectroscopy of the worn surface of a 60% cold-rolled NFHNSS specimen tested in Hank’ s solution is shown in Fig. 10. According to previous literatures [46, 47], the binding energy of O1 s at 533.4 eV corresponds to the phosphate groups and adsorbed water and that of Fe2p at 713.5 eV determines the existence of iron phosphate, which is also confirmed by the binding energies of P2p at both 132.7 and 133.54 eV.

Fig. 10

	Figure Option ViewDownloadNew Window

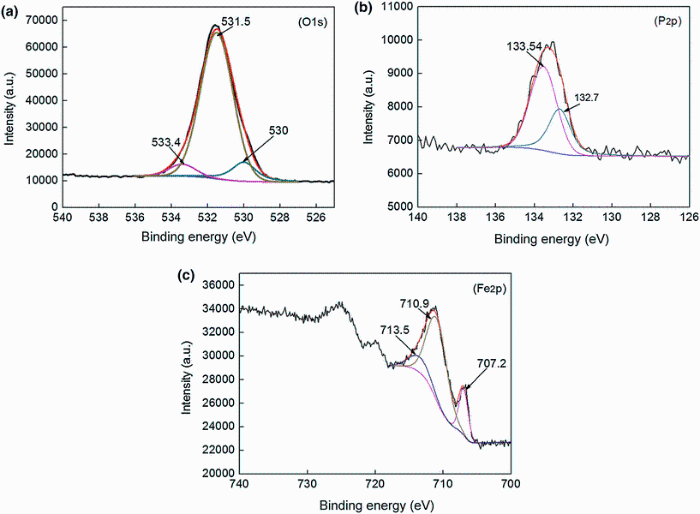

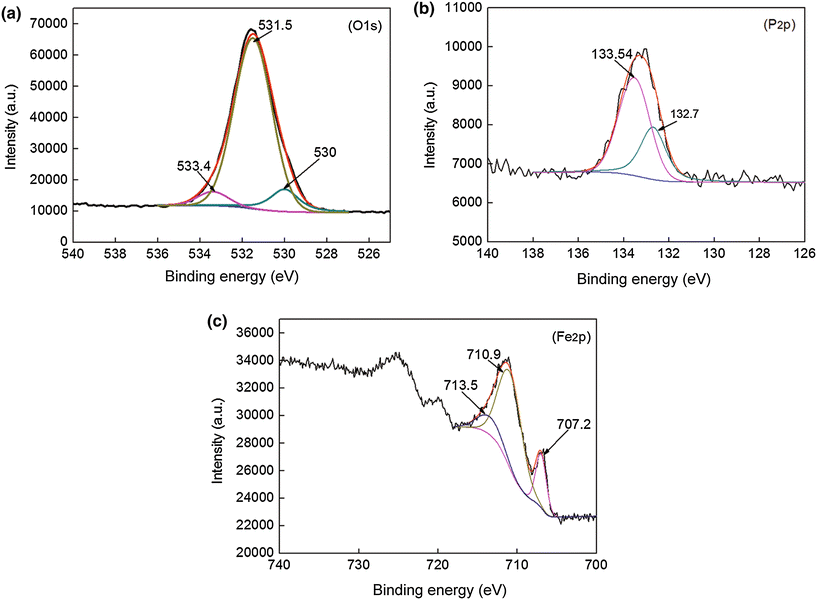

	Fig. 10 X-ray photoelectron spectroscopy spectra of O1 s, P2p and Fe2p of the worn surface of a 60% cold-rolled NFHNSS tested in Hank’ s solution

As listed in Table 2, the Hank’ s solution contained HPO₄^2- and H₂PO₄^-, which would be easily absorbed by the nascent surface created through mechanical wear, and subsequently, they reacted with NFHNSS to form metal phosphates such as FePO₄ to act as boundary lubricating films, which could protect the worn surface from both corrosion and mechanical wear [48, 49, 50]. On the other hand, fine corrosion-wear debris might form and deposited on the worn surface to act as dry lubricants. Both of the above two processes would lead to a great decrease in wear rate, especially for the NFHNSS with low strain. Therefore, even though some pitting occurred during sliding tests (Fig. 7c), they contributed little to the whole wear rate. Based on the results of corrosion-wear tests, we can come to a conclusion that corrosion does not always accelerate the wear and other factors which are helpful for wear resistance should also be taken into account.

Friction coefficient is usually connected to the surface condition of friction pairs. For those specimens tested under the same condition, similar worn surface characteristics led to nearly equal friction coefficient (Fig. 6). The difference is, in dry sliding wear tests, a mass of wear debris, a part of which had a certain fluidity, remained on the worn surface; as a result, friction coefficient fluctuated with test time due to the generation and movement of wear debris and was lower in contrast to that in distilled water. By comparison, when sliding wear tests were carried out in Hank’ s solution, the presence of the boundary films and fine wear particles acting as dry lubricant [4] remarkably decreased the friction coefficient. Of course, since there was no wear debris existing on the worn surface, the friction coefficient stayed relatively stable with increasing test time in both distilled water and Hank’ s solution.
